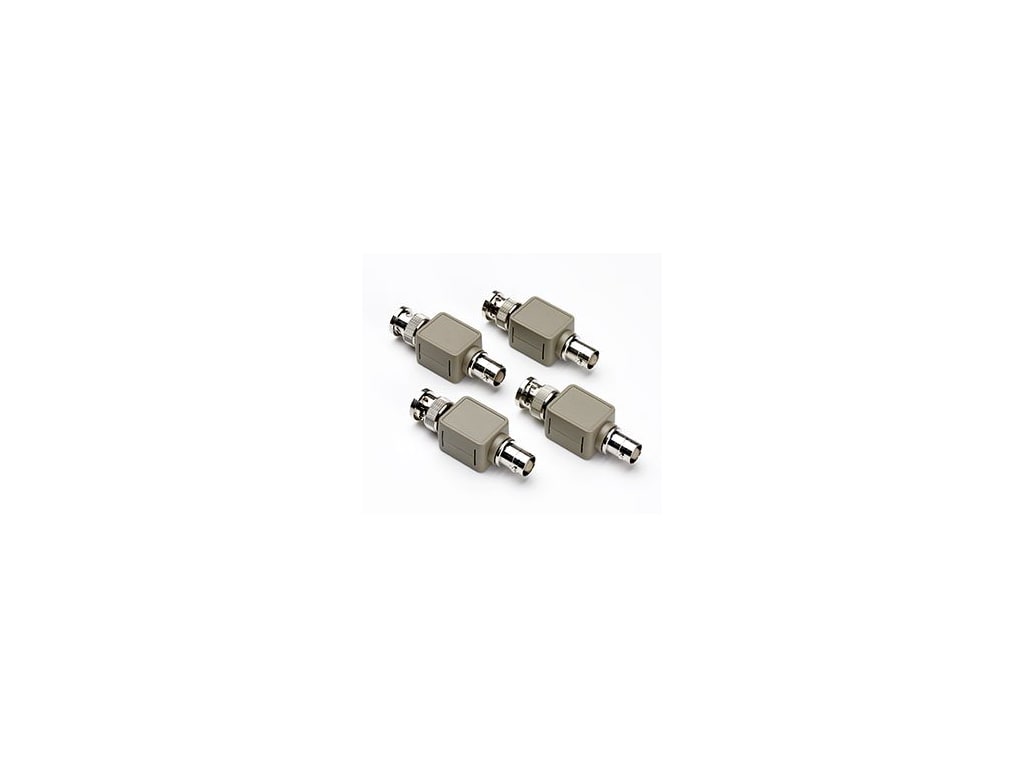

The TA050 attenuator set consists of four coaxial attenuators designed for use with signals up to 1 GHz. Each attenuator has a male and a female BNC connector.
The TA050 attenuators must be used with a matched 50 Ω source and load. If you wish to attenuate a signal before feeding it into a high-impedance measuring instrument, you must add a 50 Ω feedthrough terminator such as the Pico Technology TA051.
Specifications:
- Bandwidth: DC to 1 GHz
- Attenuation: 3 dB, 6 dB, 10 dB, 20 dB
- Maximum power dissipation: 1 W
- Input impedance: 50 Ω
- Output impedance: 50 Ω
- VSWR: 1.5:1 or better
- Dimensions: 56 x 20 x 17 mm (approximately 2.2 x 0.8 x 0.7 in)
- Connectors: BNC, 1 male + 1 female
