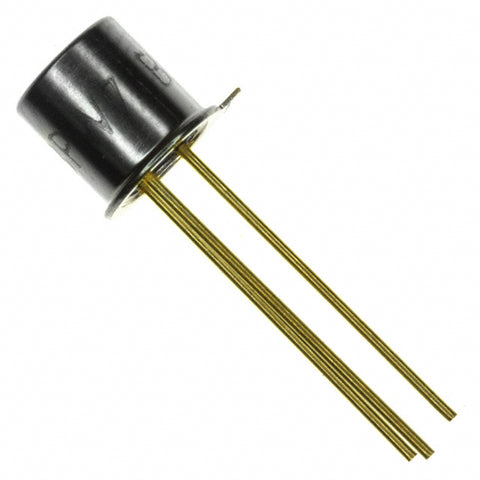

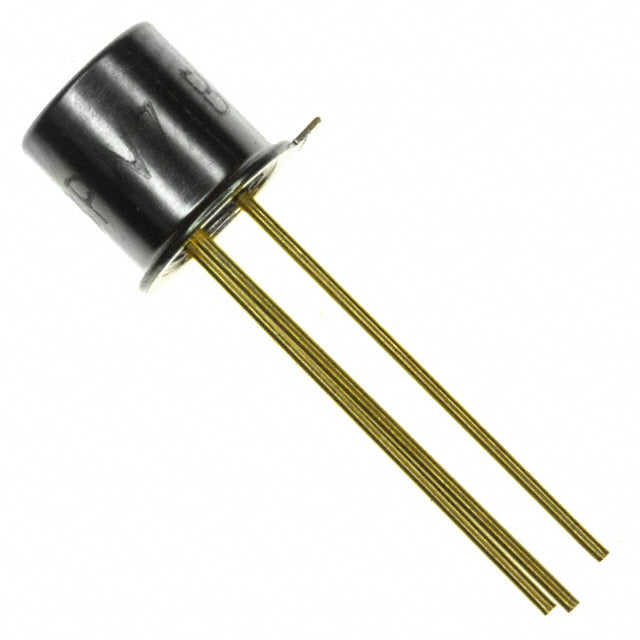

BPW77 is a silicon NPN phototransistor with high radiant sensitivity in hermetically sealed TO-18 package with base terminal and glass lens. It is sensitive to visible and near infrared radiation.
Features:
- Package type: leaded
- Package form: TO-18
- Dimensions (in mm): Ø 4.7
- High photo sensitivity
- High radiant sensitivity
- Suitable for visible and near infrared radiation
- Fast response times
- Angle of half sensitivity: ϕ = ± 10°
- Base terminal connected
- Hermetically sealed package
- Lead (Pb)-free component in accordance with RoHS 2002/95/EC and WEEE 2002/96/EC
Specifications:
- Voltage - Collector Emitter Breakdown (Max): 70 V
- Current - Collector (Ic) (Max): 50 mA
- Current - Dark (Id) (Max): 100 nA
- Wavelength: 850nm
- Viewing Angle: 20°
- Power - Max: 250 mW
- Mounting Type: Through Hole
- Orientation: Top View
- Operating Temperature: -40°C ~ 125°C
Applications:
- Detector in electronic control and drive circuits
