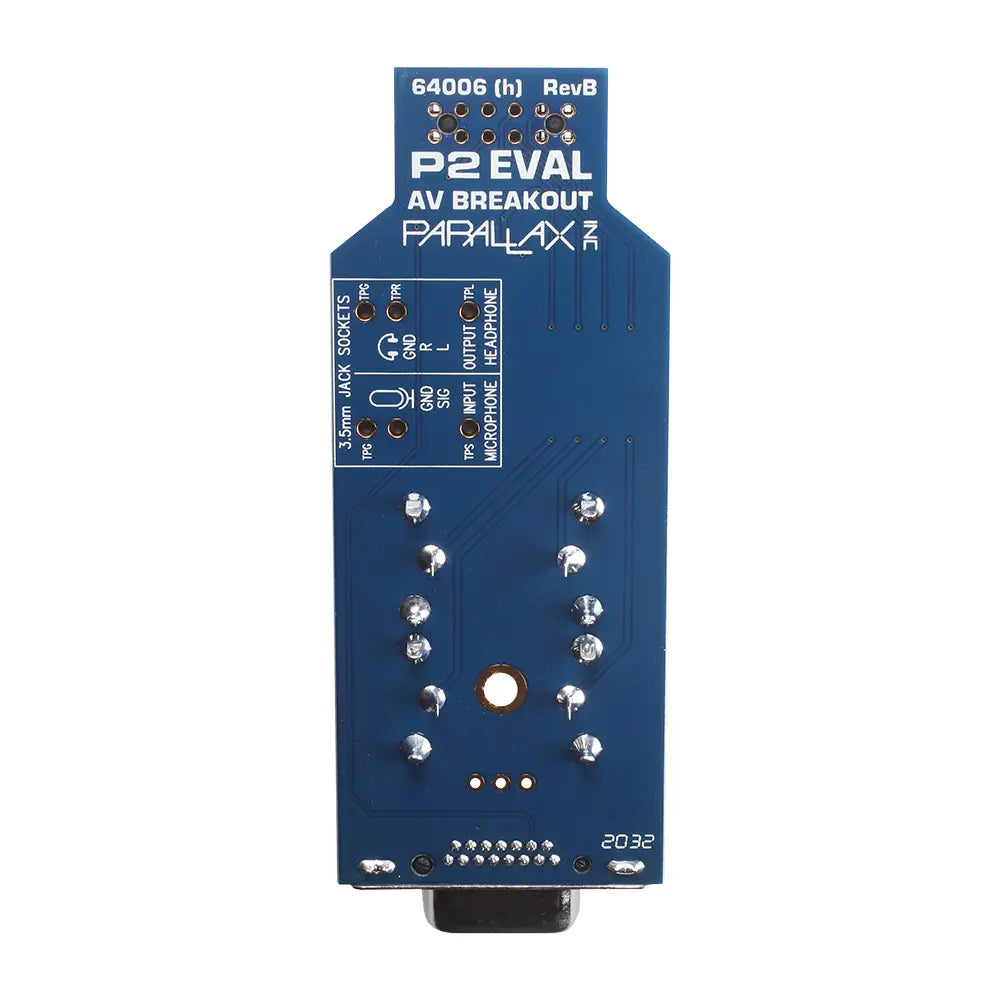

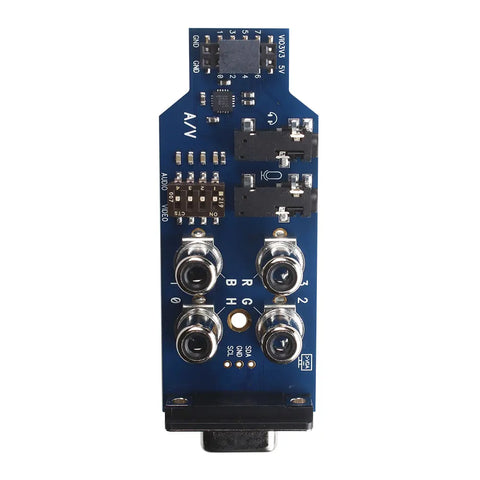

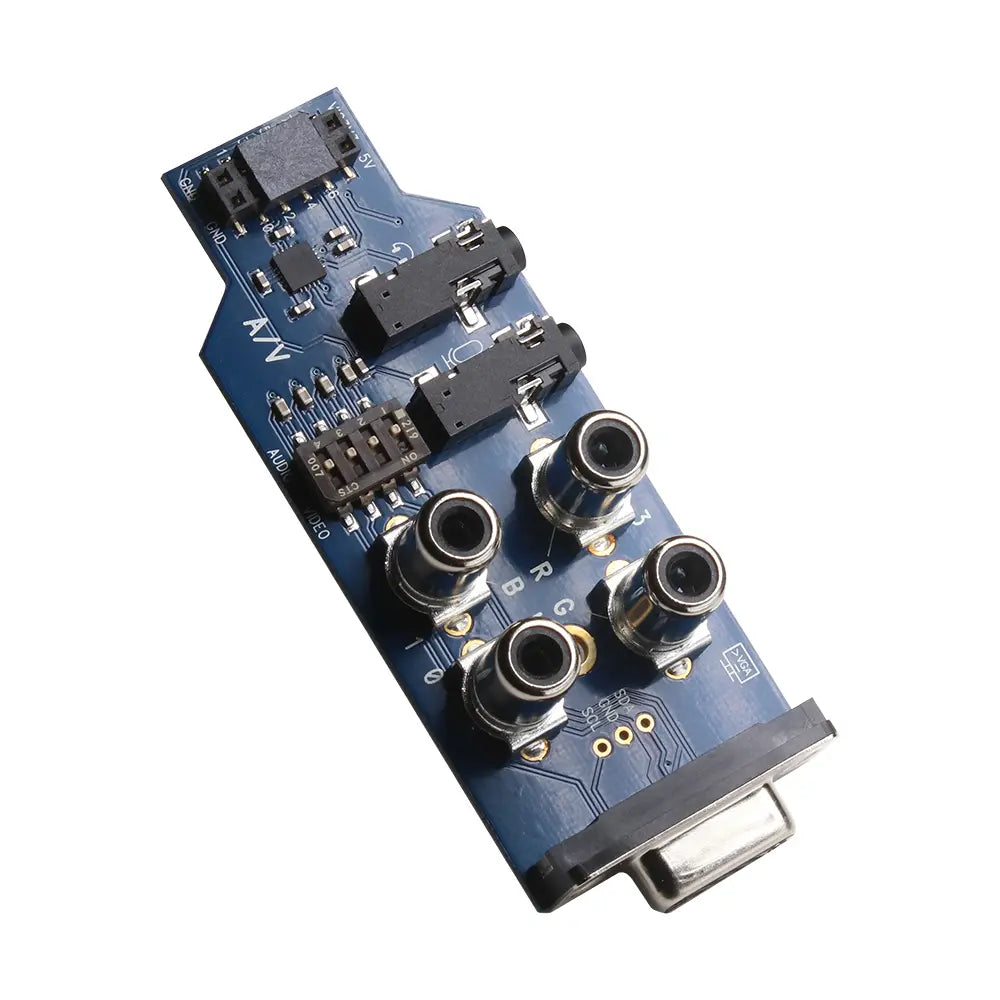

Parallax P2 Eval AV Breakout Add-on Board

The P2 Eval AV Breakout Add-on Board speeds development for Propeller 2 multicore microcontroller projects requiring audiovisual accessories. This board features a pass-through socket that stacks on top of a 2×6 accessory header on the Propeller 2 Evaluation Board. It is also compatible with a P2 Edge Module Breadboard or P2 Edge Mini Breakout Board with a P2 Edge Module (#P2-EC) installed.

• Amplified Audio Out (80mW) / Headphone Socket (3.5 mm Stereo Jack)
• Audio Input / Microphone Socket (3.5 mm Mono Jack)
• Audio-to-RCA 4-band
• Component Video-to-RCA 4-band (Composite Sync, RGBS)
• Digital component video (RCA Socket)
• Composite Video (RCA Socket)
• VGA (15-pin VGA socket)
• PCB Dimensions: 3.2 x 1.3 in (8.13 x 3.3 cm)
