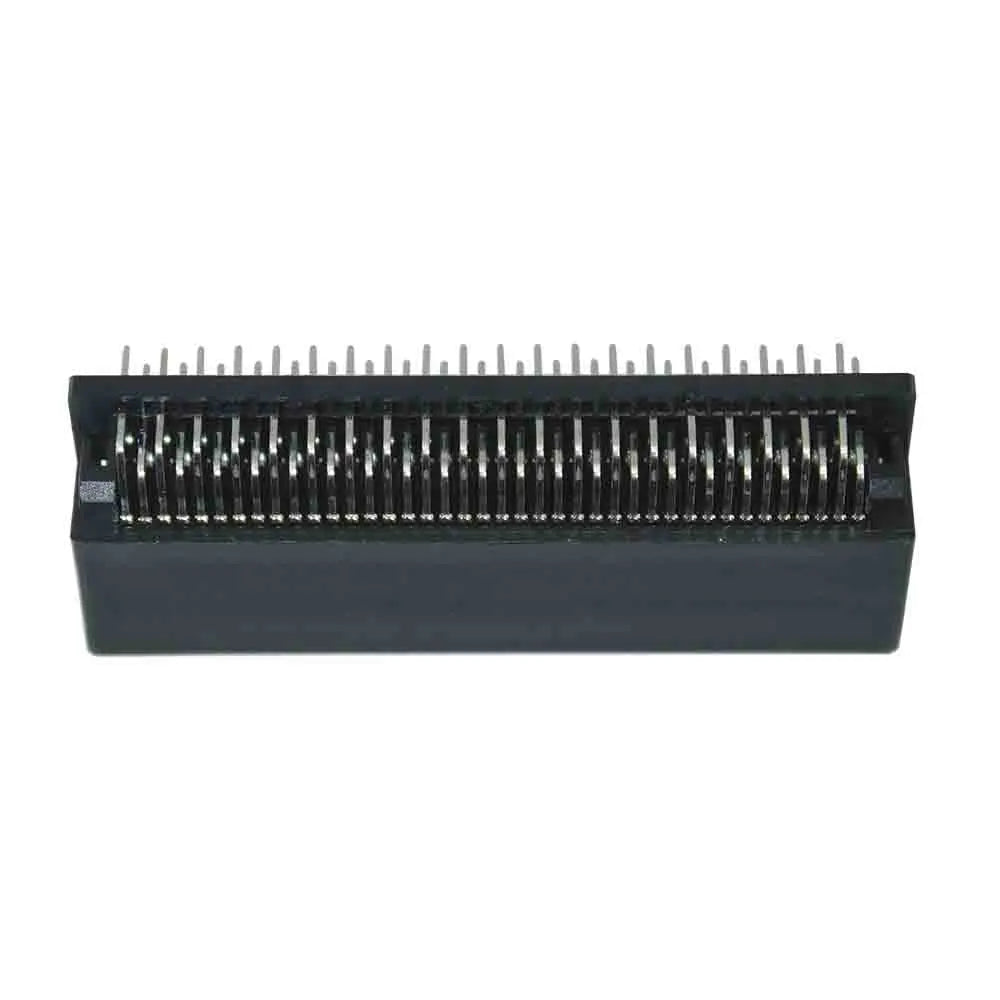

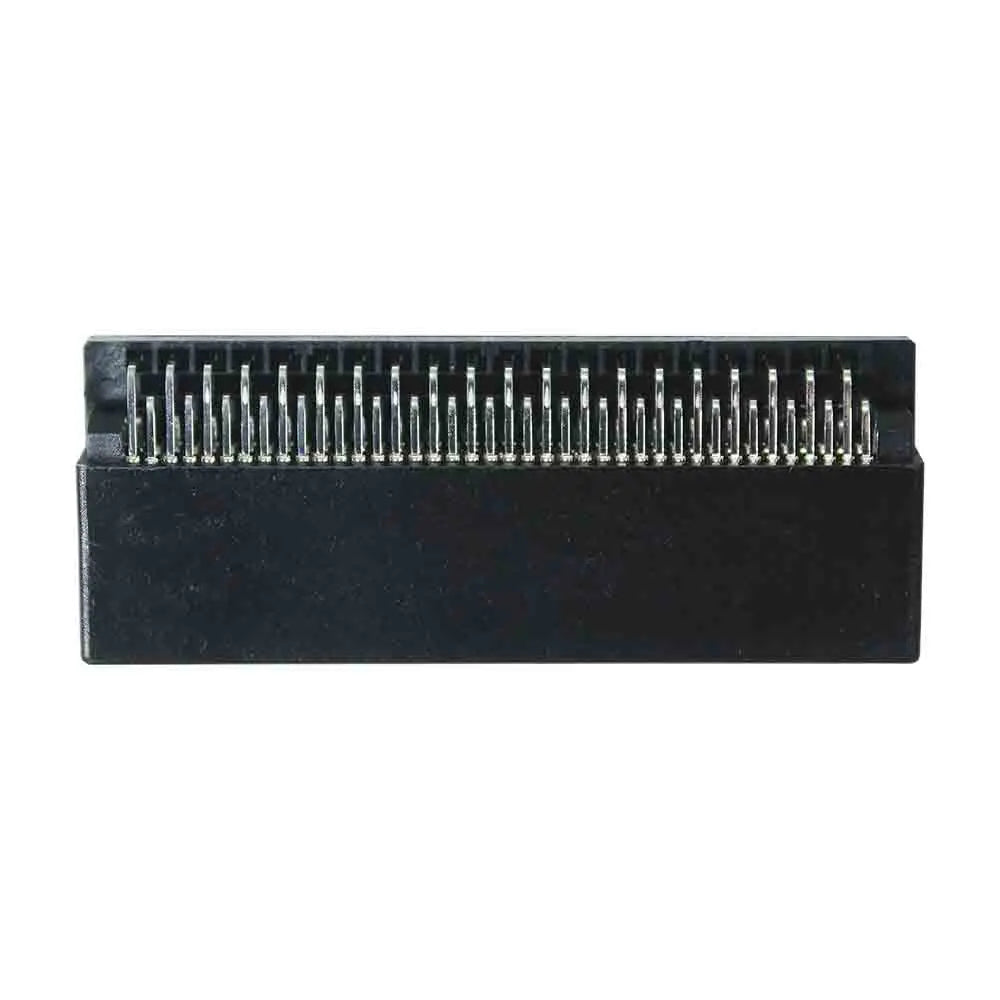

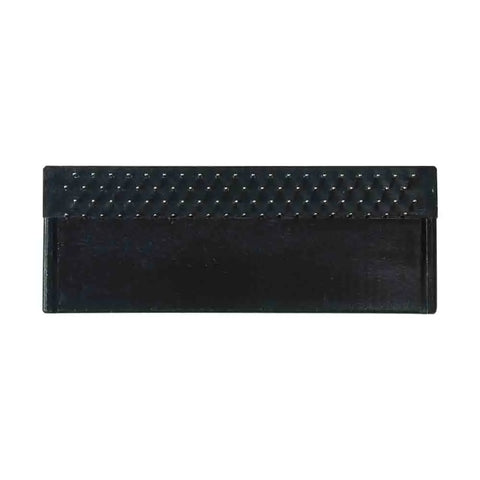

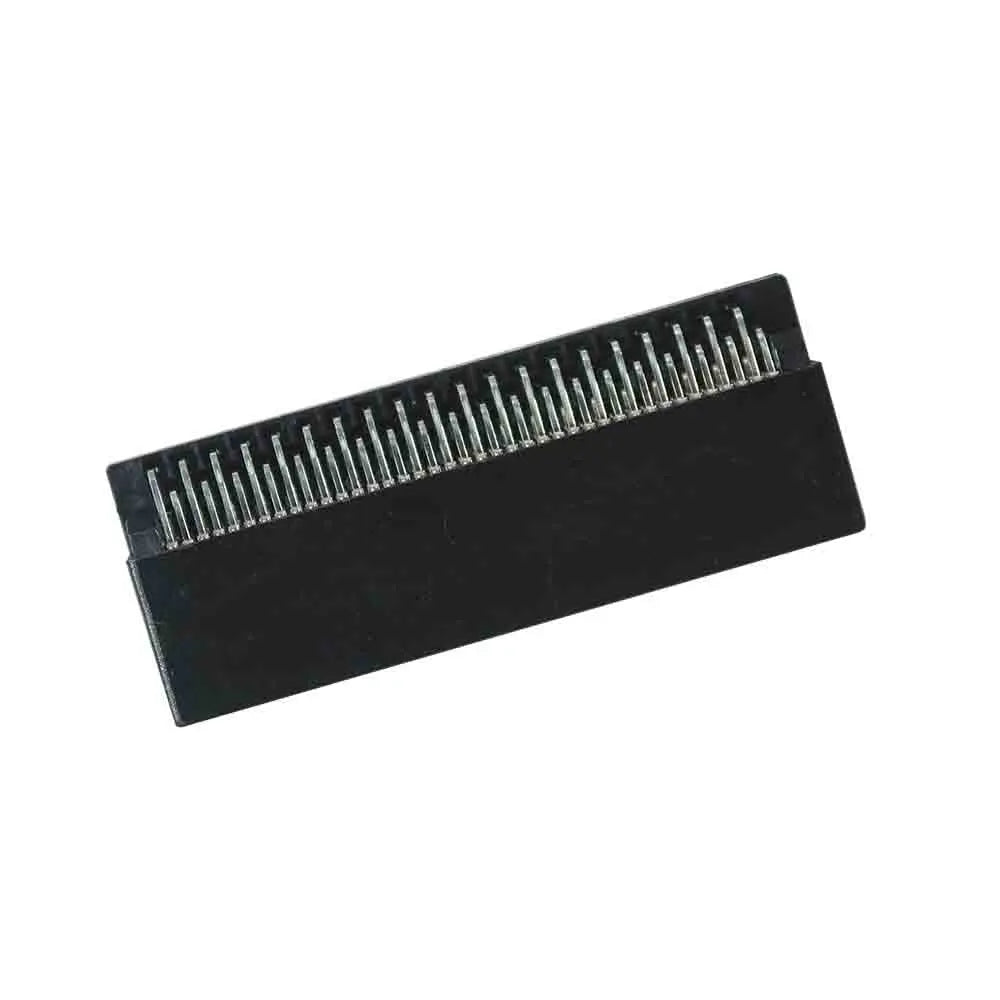

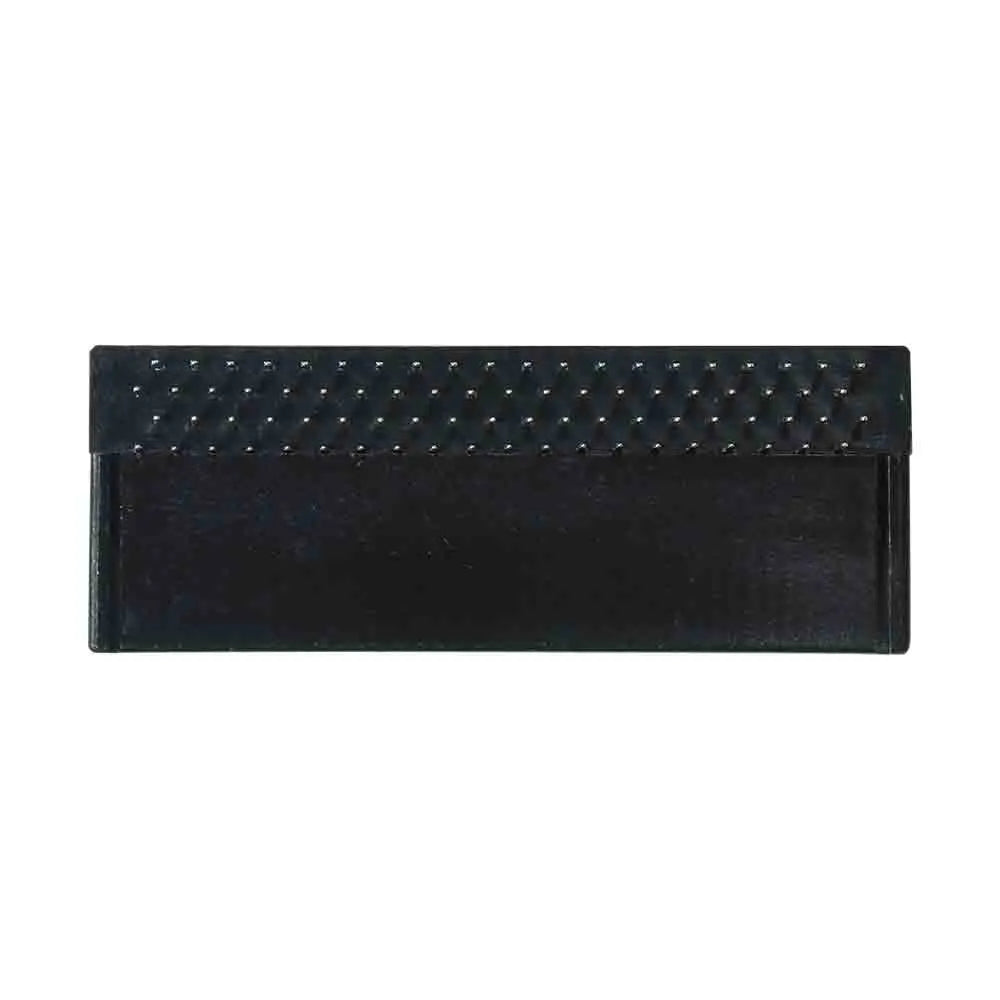

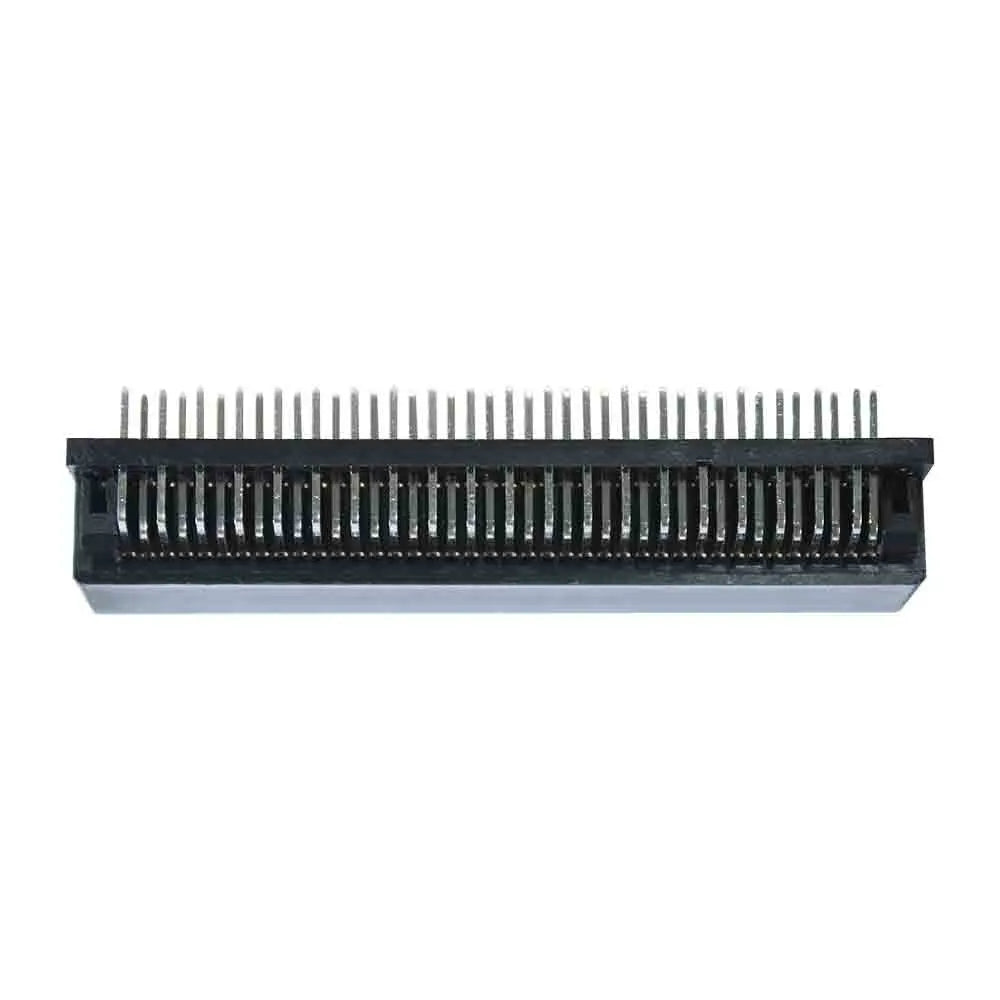

This through-hole, 80-way edge socket with 1.27 mm spacing holds the P2 Edge Module (#P2-EC) in a right-angle, parallel to the printed circuit board. This is a low-insertion-force connector which securely holds the P2 Edge Module in place. Alternatively, a vertical version is also available (#450-00310), as well as a surface-mount version (#450-00309). The printed circuit board pattern varies between the two connectors but the socket springs and spacing for the P2 Edge Module are identical.
Features:
- Quick and secure project mounting for the P2 Edge Module
- Low-cost, quality design for volume applications
- Socket the P2 Edge Module to allow a lower-cost 2-layer printed circuit board
Application:
- Production component for mass manufacturing
80-pin Edge Connector Socket, Right-Angle Specifications:
- Current rating: 1 Amp
- Voltage rating: 250V AC RMS
- Dielectric withstanding voltage: 500V AC RMS 60 Hz for one minute
- Contact resistance: 30 milli-ohms max at 1 A DC
- Insulation resistance: 1000 Mega-ohms min. At 500V DC
- Temperature range: -55C to +85C
- Contact: brass, gold flash on contact area, tin plated on solder tails, over nickel
- RoHS Compliant
