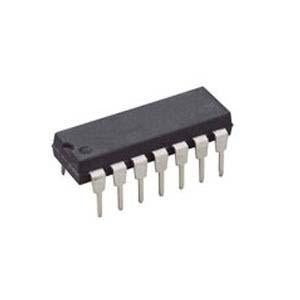

Logic IC 74HC132 14 Pin Quad 2-Input NAND with Schmitt Trigger Inputs

SKU: 1074HC132

  • Sale
  • $0.30
  • 14 Pin Quad 2-Input NAND with Schmitt Trigger Inputs
  • Wide Operating Voltage Range of 2 V to 6 V
  • Outputs Can Drive Up To 10 LSTTL Loads
  • Low Power Consumption, 20-µA Max ICC
  • Typical tpd = 14 ns
  • ±4-mA Output Drive at 5 V
  • Low Input Current of 1 µA Max
  • Operation From Very Slow Input Transitions
  • Temperature-Compensated Threshold Levels
  • High Noise Immunity
  • Same Pinouts as ’HC00

Datasheet
