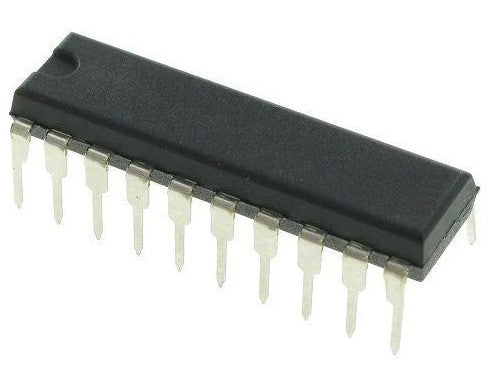

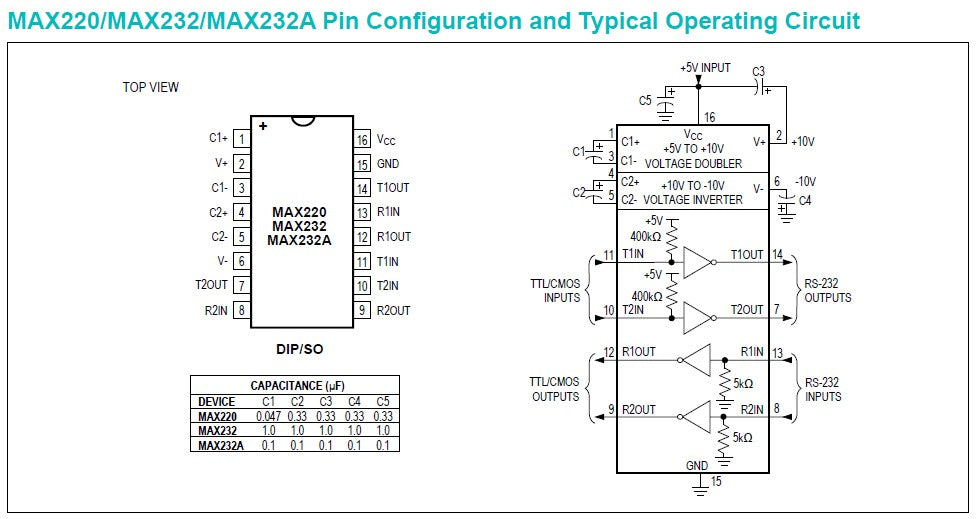

RS-232 Interface IC, +5V Powered, Multichannel RS-232 Drivers/Receivers, 20 Pin DIP

The MAX220–MAX249 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX225, MAX233, MAX235, and MAX245/MAX246/ MAX247 use no external components and are recommended for applications where printed circuit board space is critical. The MAX220-MAX249 are offered in 26 different packages with temperatures from 0 to +70°C up to -55°C to +125°C. See ordering information table at the end of the data sheet for all package and temperature options.

Features:

• Saves Board Space
• Integrated Charge Pump Circuitry
• Eliminates the Need for a Bipolar ±12V Supply
• Enables Single Supply Operation from +5V Supply
• Integrated Capacitors (MAX223, MAX233, MAX235, MAX245–MAX247)
• Saves Power for Reduced Power Requirements
• 5μW Shutdown Mode

Applications:

• Interface Translation
• Multidrop RS-232 Networks
• Portable Diagnostics Equipment
