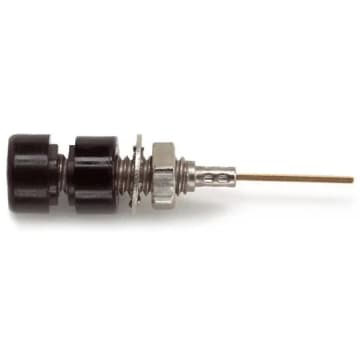

Banana Jacks With Wire Wrap Terminals Model 4022-0

Pomona

Banana Jacks With Wire Wrap Terminals Model 4022-0

SKU: 034022-0

  • Sale
  • $3.30
  • Jack: Nickel Plated Brass
  • Terminal: Gold Plated Phosphor Bronze
  • Insulation: Polycarbonate molded to Banana Jack body
  • Panel Insulator: Polycarbonate. Color matches color of Banana Jack insulation.
  • Lockwasher #8 Internal Tooth: Steel. Nickel plated per QQ-N-290 Class 2, 200/300 microinches.
  • Wrapped Wire Terminal: Beryllium Copper. Gold plated per MIL-G-45204, Type II Class 00 over electroless nickel per MIL-C-26074, Class 1, 200/300 microinches.
  • Operating Temperature: +115°C (+239°F) Max.
  • Operating Voltage: 1500 VDC
  • Current: 3 Amperes
