ZT-M0 True-RMS Digital Multimeter Auto and Manual with Analog Bar Graph AC/DC Voltage Ammeter Current Ohm

Features:

• Battery test, square wave output test

• Capacitance, temperature, frequency and diode test

• AC/DC voltage, AC/DC current, resistance, continuity and NCV test

• Duty cycle, load current and dump energy test

• TRMS, auto-ranging, data hold with low battery indication

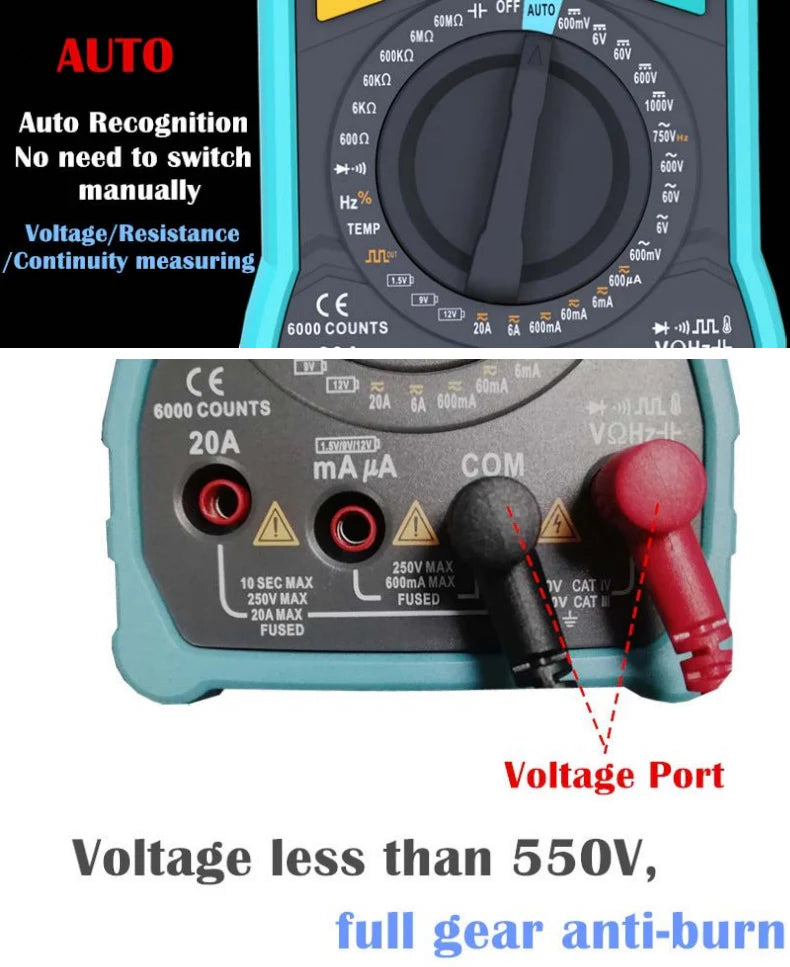

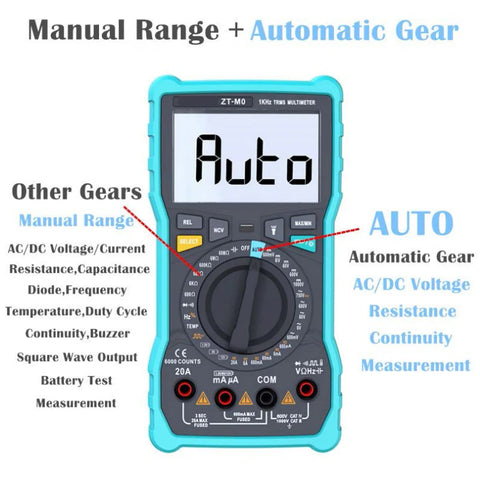

• Manual range and automatic identification

• Flashlight with 2 back probe holder

• Max/Min reading

Specifications:

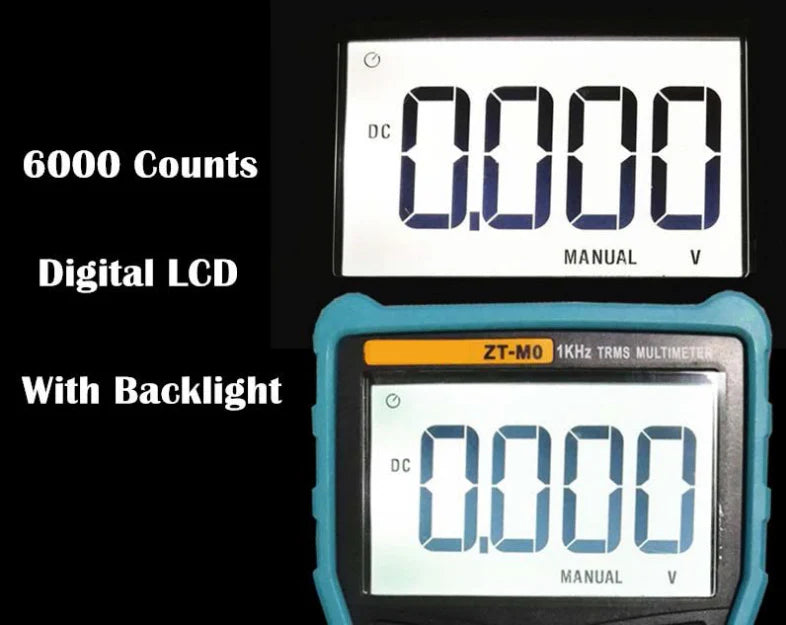

• Display: 6000 counts

• DC Voltage: 600.0mV/6.000V/60.00V/600.0V/1000V ±(0.5%+3)

• AC Voltage: 600.0mV/6.000V/60.00V/600.0V/750V ±(1.0%+3)

• DC Current: 600.0μA/6.000mA/60.00mA/600.0mA/6.000A/20.00A ±(1.2%+3)

• AC Current: 600.0μA/6.000mA/60.00mA/600.0mA/6.000A/20.00A ±(1.5%+3)

• Resistance: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ±(0.5%+3); 60.00MΩ ±(1.5%+3)

• Capacitance: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(5.0%+20);
  9.999mF/99.99mF ±(5.0%+5)

• Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(0.1%+2)

• Duty Cycle: 1%~99% ±(0.1%+2)

• Temperature: (-20~1000)℃/(-4~1832)℉ ±(2.5%+5)

• Square wave output: 50Hz~5000Hz

• Diode: show the forward voltage

• NCV: alarm beep sounds and LED blink if detect AC voltage

• Continuity: alarm beep sounds if resistance less than 50Ω

• Power: 1.5V (AA) x 3

• Size: 176mm * 91mm * 47mm

• Weight: 330g

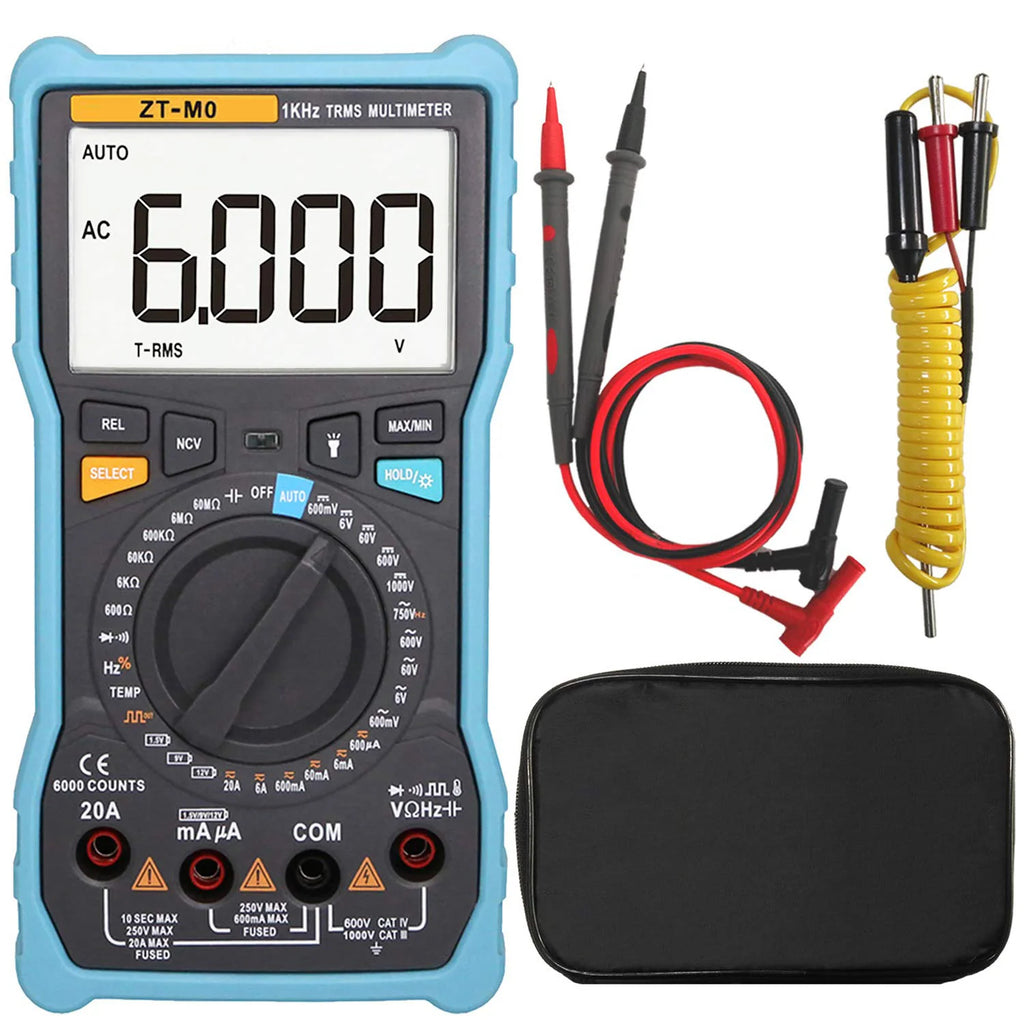

Package Includes:

• 1 * Digital Multimeter

• 1 * Probes

• 1 * Thermocouple

• 1 * Carrying Case

• 1 * User Manual
