Siglent

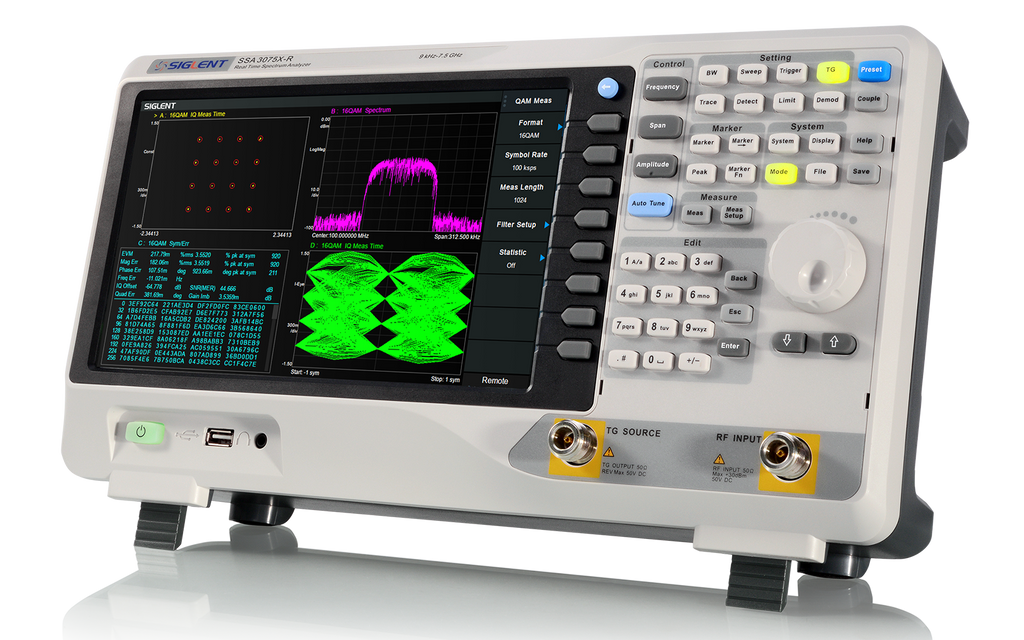

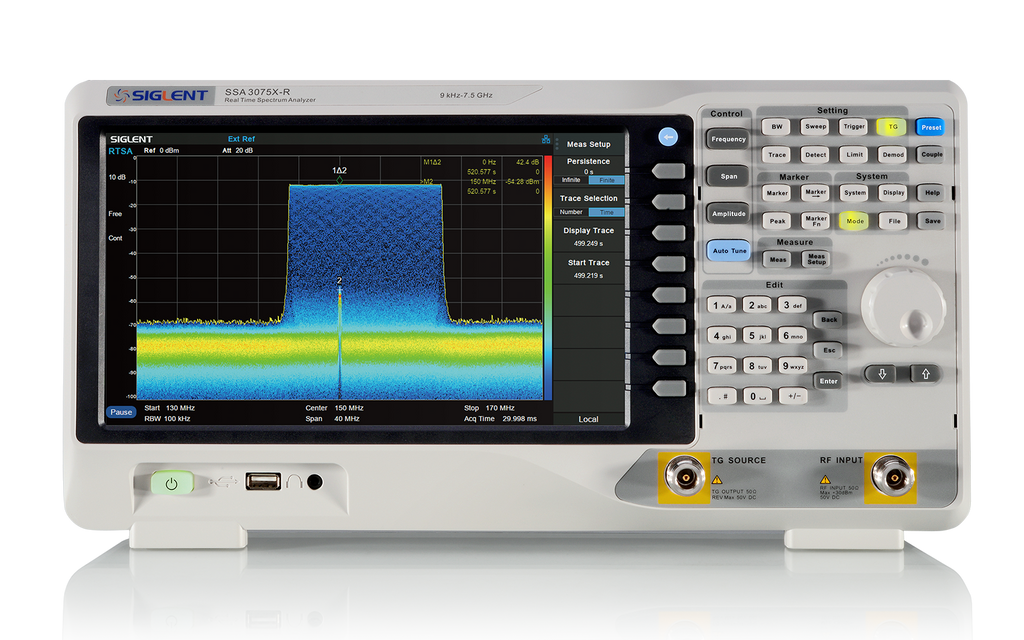

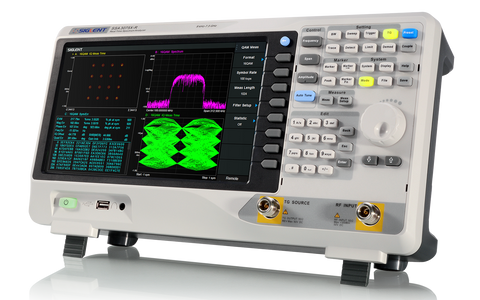

Siglent 9 kHz~5.0 GHz Spectrum Analyzer with Tracking Generator

SKU: 01SSA3050X-R

  • Sale
  • Regular price $8,549.00


The SIGLENT SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF signal monitor and analysis. With a capability of 40 MHz analysis bandwidth and 7.2 µs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. They also provide standard tracking generator for network analysis, optional wide band digital modulation analysis, and EMI pre-compliance test.
Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.

Key Features



  • Spectrum Analyzer Frequency Range from 9 kHz up to 5.0 GHz
  • All-Digital IF Technology
  • -161 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Total Amplitude Accuracy < 0.7 dB
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Standard Preamplifier
  • Up to 2.1 GHz Tracking Generator Kit (Option)
  • Reflection Measurement Kit (Option)
  • Advanced Measurement Kit (Option)
  • EMI Pre-compliance Measurements Kit (Option)
  • 10.1 lnch WVGA (1024x600)Display

Includes

  • Quick Start
  • Power Cord
  • USB Cable
  • Calibration Certificate
