RSR 4-In-One Instrument Lab Bench Setup with 100 MHZ Digital Scope

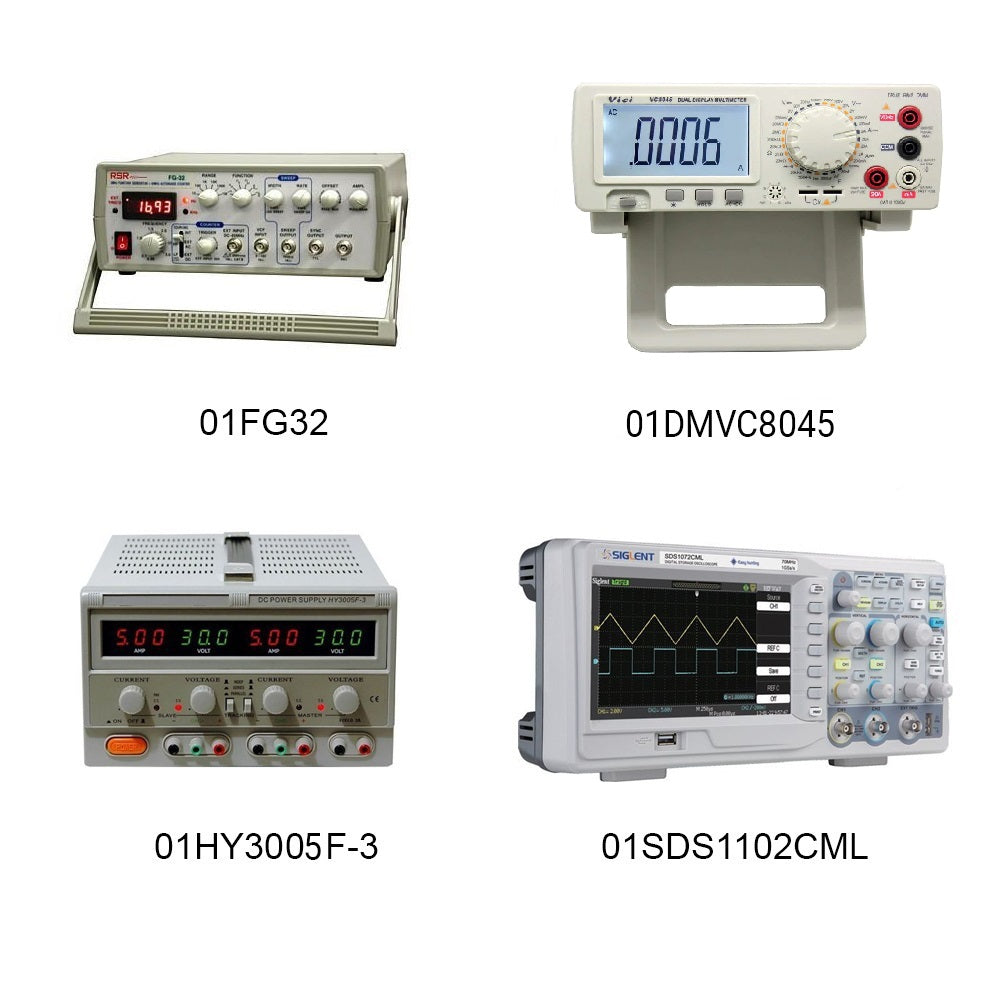

4 in 1 Lab Bench Instruments:

1. Sweep Function Generator
2. Triple Output Power Supply
3. Digital Multimeter
4. Oscilloscope
5. Sweep Function Generator (Model FG-32)

Sweep Function Generator (Model FG-32)

• 3MHz with digital display
• Six waveform functions (sine, triangle, square, ramp, pulse)
• Internal/External frequency counter function

Triple Output Power Supply (Model: 01HY3003F-3)

• Two 0-30V; 0-3A variable output.
• Serial and parallel operation for double of normal outputs.
• 5V @ 3 A fixed output.
• Load Effect: .01% +5mV
• Source Effect: .02% +1mV
• Current limiting and short circuit protection.
• LED display
• Dimensions: 14.3" x 10.5" x 6.5"
• Weight: 20 lbs.

Bench DMM True RMS (Model VC8045)

• 1/2 digit large LCD display with backlight;
• With the DCV,ACV,DCA,ACA,Ω,CAP,Hz,hFE,diode and continuity test function;
• Max. voltage measuring: DC 1000Vor AC value, resolution:10uV;
• Max. current measuring: 20A,polarity automatic switch,data hold,backlight
• AC measuring adopt high accuracy true RMS, with bandwidth and AC+DC measuring

Oscilloscope (Model SDS1102CML)

• 100 MHz bandwidth
• 1 GSA/s sampling rate
• 7 inches color TFT-LCD display
• 6 digits hardware frequency counter
• Waveform record and play back function
• Unique digital filter and data recorder function
• Embedded 12 languages, online help, one key storing, and one key printing
• Interface: USB device, USB host, RS-232, PASS/FAIL
• Support USB-TMC protocol and SCPI programming command control
• 2M pts memory depth
