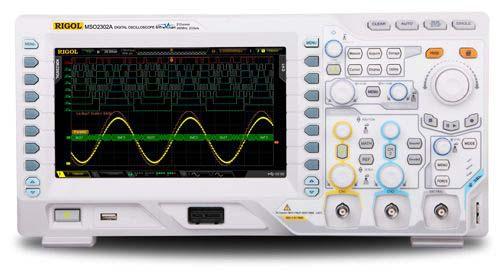

The MSO2000A series digital oscilloscope is another Best-In-Class instrument from Rigol offering an unmatched feature/value package. The MSO2000A is a fast and versatile scope covering frequencies up to 300 MHz with two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GSa/s max. sample rate and 14 Mpts. of standard memory depth to its user-friendly interface and 8 inch WVGA display and you've got a scope that outperforms the competition in a wide range of bench-top and field applications. The MSO2000A series also includes 16 bit of mixed signal logic channels as well as an option for an embedded 2 channel, 25 MHz waveform generator.
- Wider vertical range(500uV/div ~ 10V/div), lower noise floor, better for small signal capturing
- Full bandwidth, lower overshoot(<5%), perfect frequency response design
- 100MHz Bandwidth
- 16 bit digital inputs for mixed signal applications with 1 GSa/s sampling
- Max. Sample Rate 2G Sa/s
- Standard Memory Depth up to14Mpts,Optional Memory Depth up to 56Mpts
- Innovative "UltraVision" technology
- 50 Ohm Impedance included
