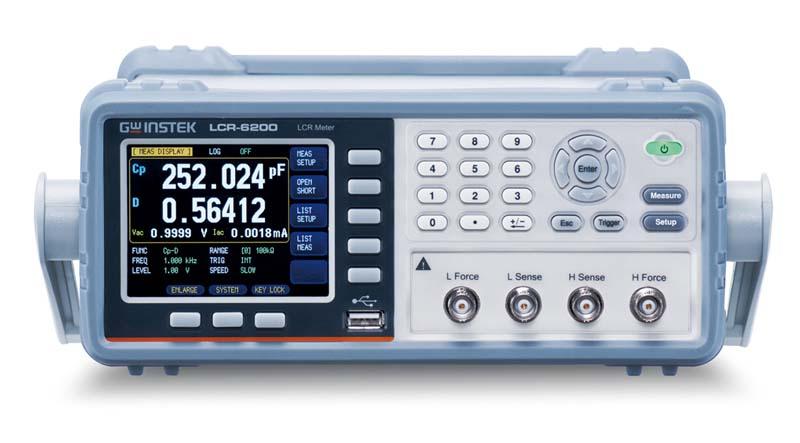

GW Instek LCR Meter Model: LCR 6002

GW Instek introduces the brand new high precision LCR meter?LCR-6000 series, which, with five models, has a test frequency range extending from 2kHz/20kHz/100kHz/200kHz/300kHz (maximum) and with 0.05% basic accuracy. The LCR-6000 series also features diverse ancillary measurements to meet the measurement requirements of different materials. For instance, the series provides the automatic level control (ALC) function to satisfy the test voltage requirement of MLCC. For inductive component measurements, the series provides the adjustable test current function and the D.C. resistance measurement function. The LCR-6000 series provides rich functionalities with the compact size.

Features:

• 10 Hz ~ 2 kHz(0.01%)
• 3.5" color LCD
• Consecutive test frequency
• Basic accuracy : 0.05%
• Measuring speed up to 25ms (max.)
• Full frequency range or spot OPEN/SHORT
• 16 major/secondary parameter measurement combinations and two additional monitoring parameters(maximum four different parameters can be shown simultaneously)
• DCR measurement and internal D.C. bias voltage (2.5V)
• PASS/FAIL judgment
• Auto Level Control (ALC) function
• BIN function provides 9BIN and 1AUX, totally 10 BIN
• 10 steps listed tests to select different frequency, voltage and current criteria
• Standard interface : RS-232C, Handler and USB storage
• Compact size, ideal for automatic equipment (2U,1/2 RACK)
