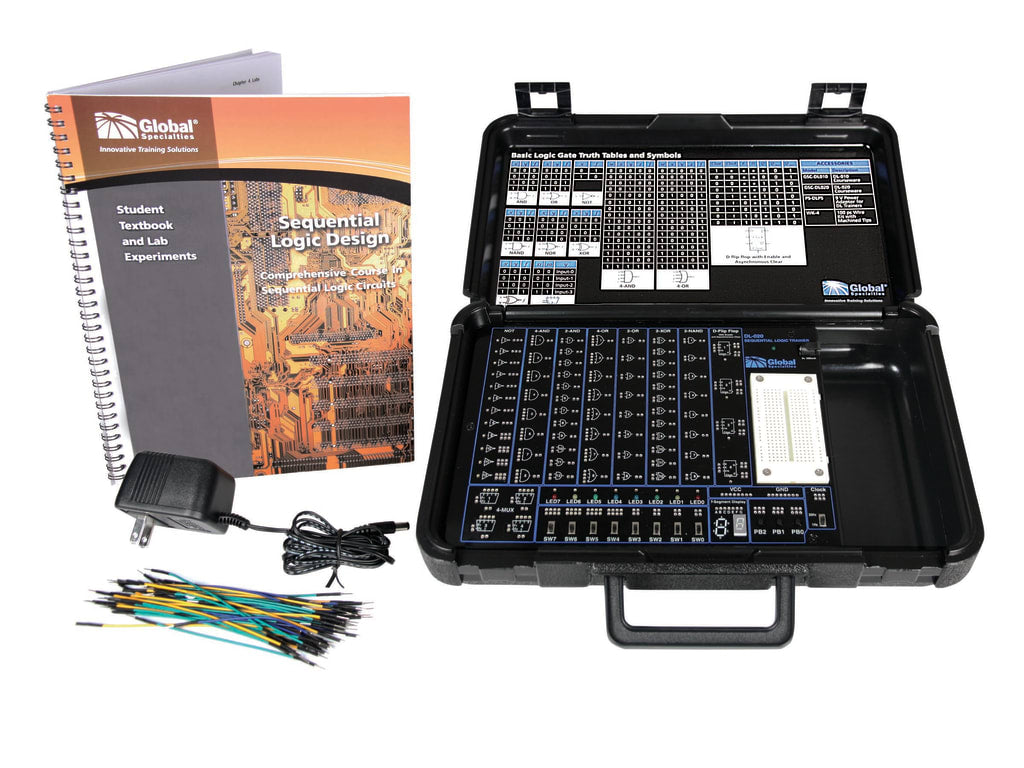

Global Specialties’ DL-020 is the second model in its series of embedded systems design trainers. The DL-020 teaches students the advanced concepts of sequential digital logic design, which is an essential step toward understanding microprocessor and microcontroller Logic.
With the DL-020, all necessary logic components are included and pre-mounted for fast, easy implementation of sequential circuits that are used as the building blocks of microprocessors. These sequential circuits include the SR latch, D latch, register, memory, finite state machine (FSM), and several real-life controller examples.
Global Specialties’ logic trainer simplifies the teaching process by eliminating the need to discretely wire IC’s as all gate elements are pre-mounted, de-coupled, and de-bounced, ready for immediate classroom use. Students can spend their time directly on logic training.
Most importantly, the trainer includes a 62- page professionally written training manual featuring an overview of sequential digital logic and 12 corresponding hands-on labs enhancing any textbook currently in use.
The DL-020 is a complete and ruggedly packed trainer that will provide a solid learning platform to individuals and classroom students.
Features:
- 62-page lab manual with 12 hands-on labs
- Experiments using standard TTL logic
- Regulated 5 V power (Vcc) and ground (GND) points

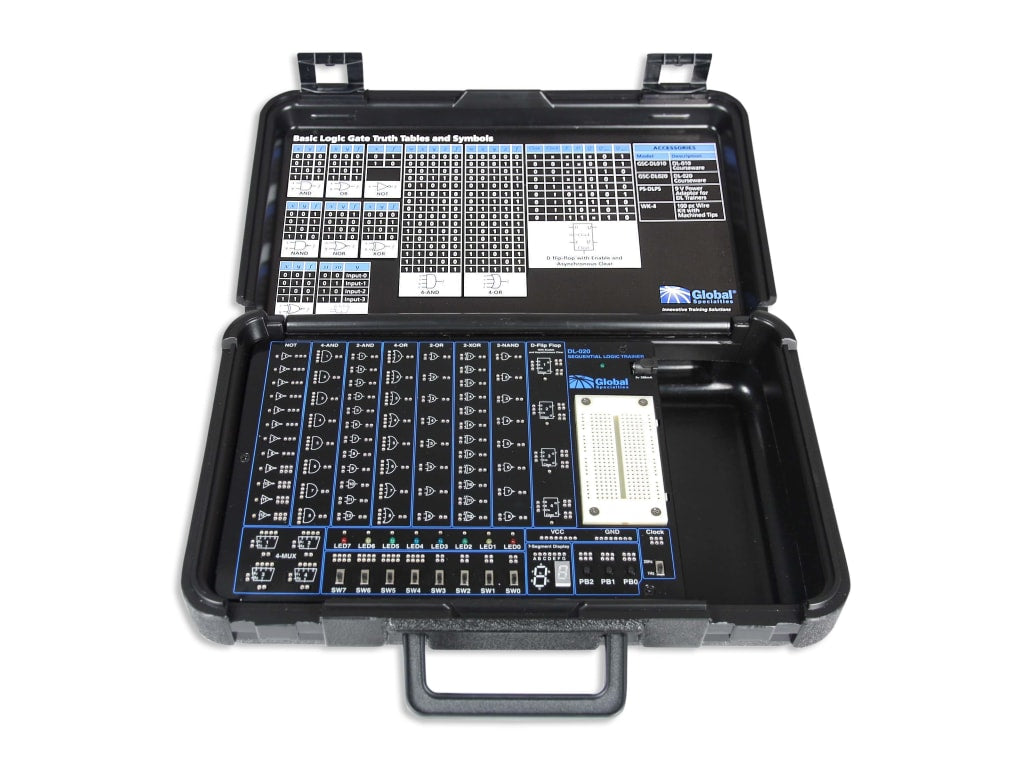

- Commonly referenced truth table chart inside the case lid
- High quality machined sockets for input and output interconnections
- Gate elements presented in easy-to-visualize graphic form
- Compatible with combinational logic circuits of the DL-010
- Interactive download version of the manual available on the iTunes store (search Global Specialties)

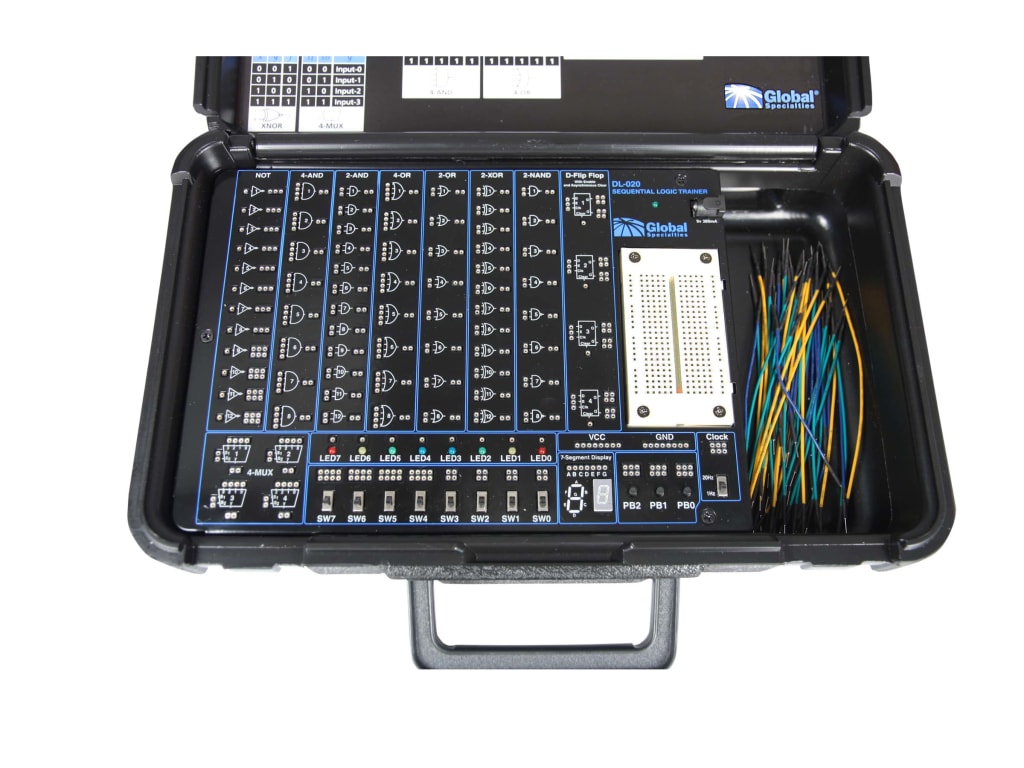

- Breadboard area allows the system to grow as students' knowledge increases
- All gate elements are pre-mounted, decoupled, debounced, and fully integrated
