Electronic Digital Force Gauge with 20kg Range and 0.01kg Resolution (FG-20KG)

SKU: 01FG20KG

  • Sale
  • $260.00

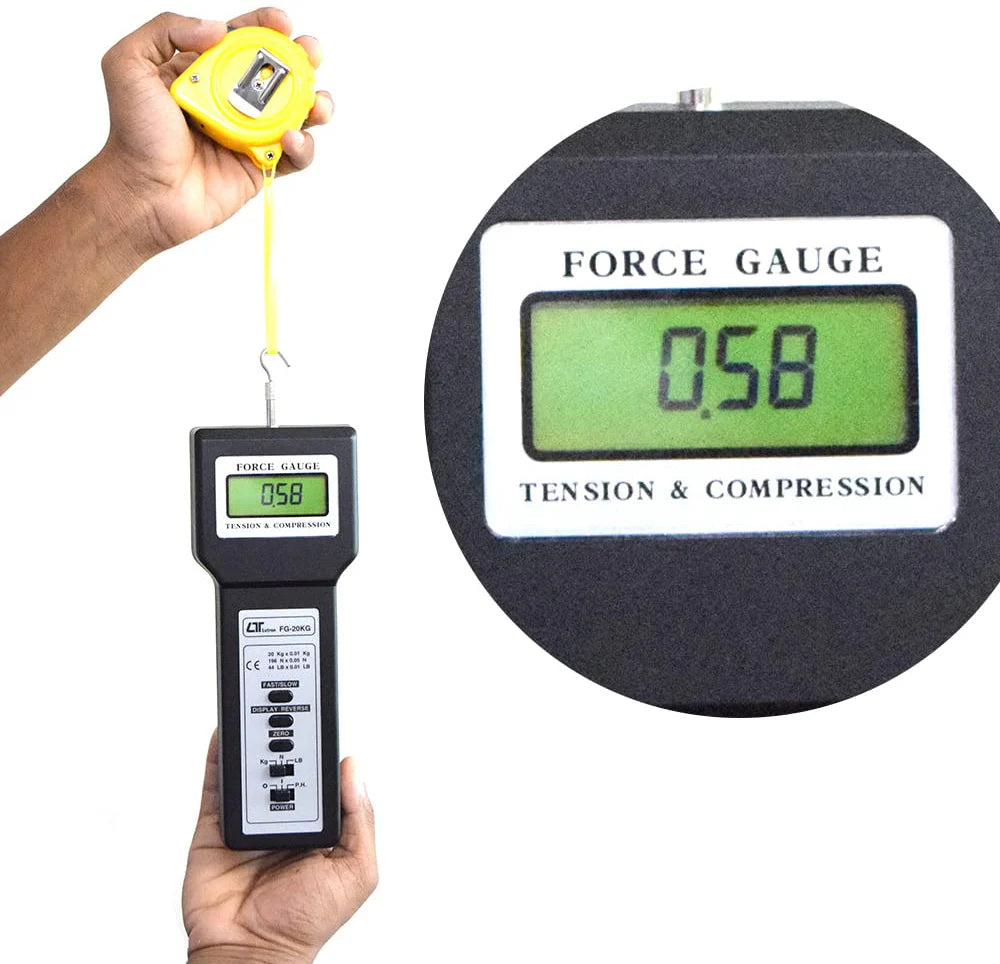

  • Measures tension & compression with 20kg Range and 0.01kg Resolution
  • 3 unit selections: Kg / LB / Newton
  • Features peak hold, zero (tare) control, and positive / reverse direction selection
  • 5-Digit LCD display with 0.4" digit size

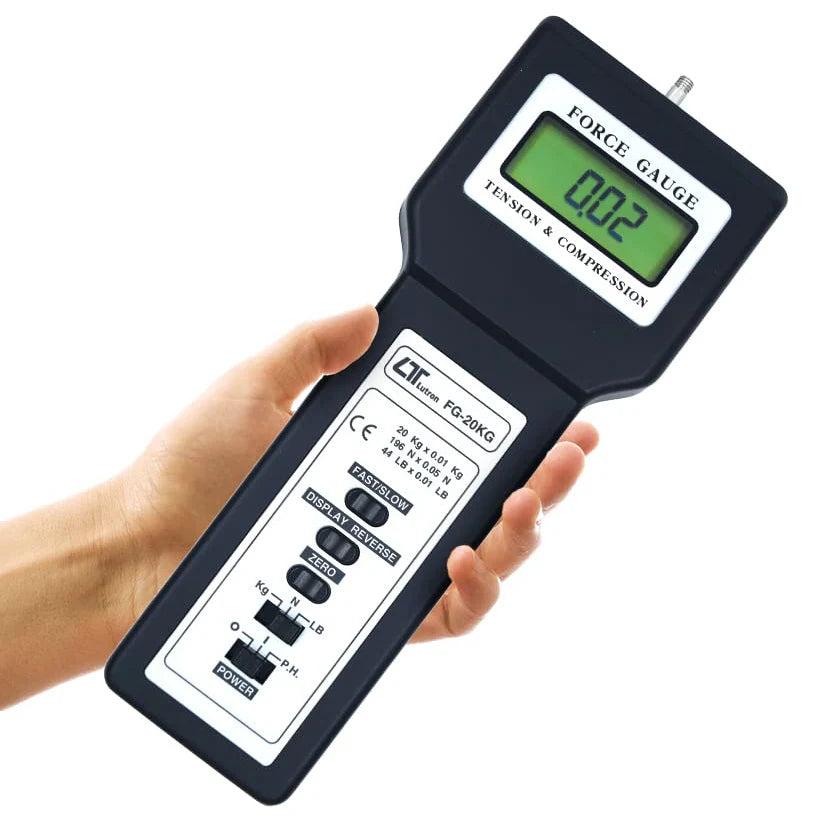

  • Handheld design, measures 8.9" x 3.3" x 1.5" and weighs about 1.2 pounds (with batteries)

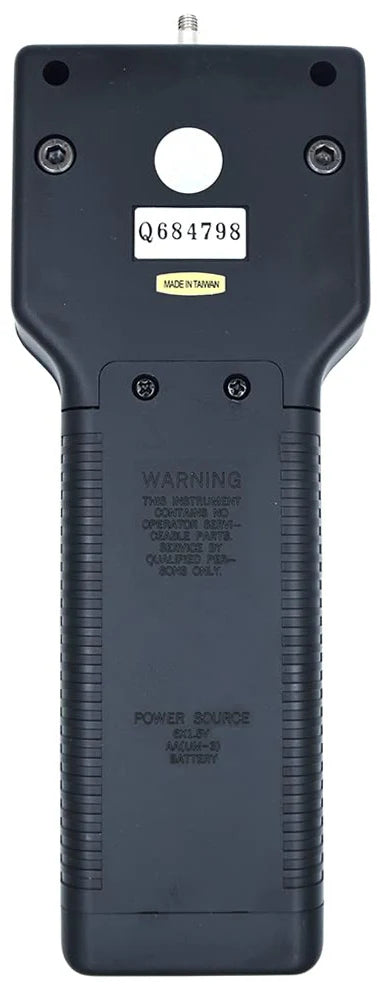

  • Mounting holes provided on the back case for easy stand mounting (compatible with test stand model FS-1001, not included)

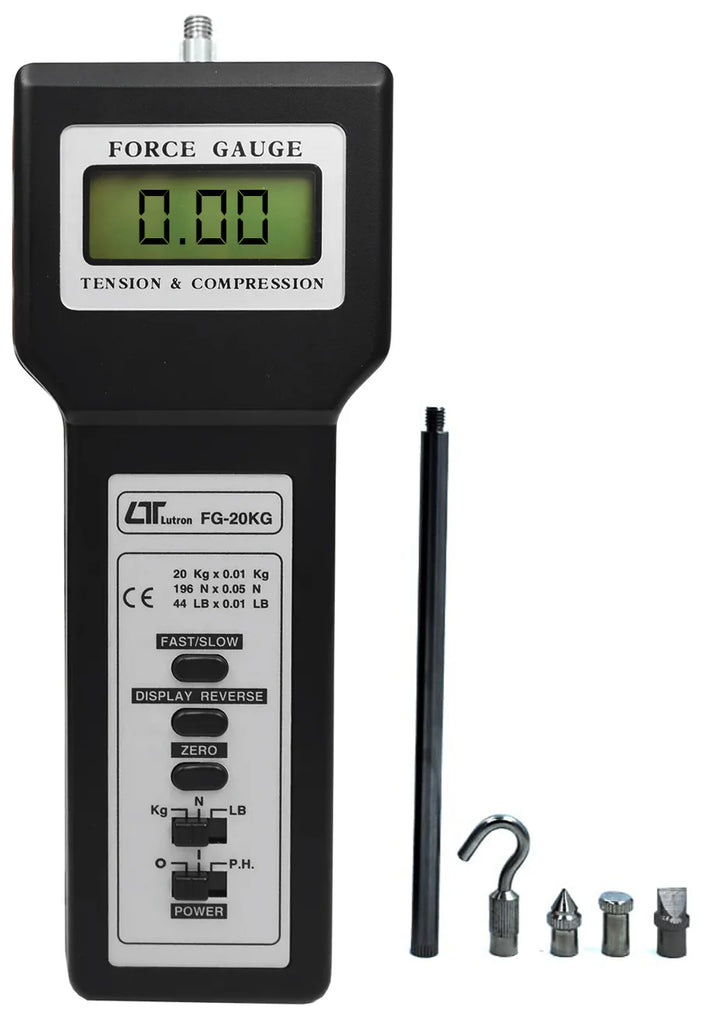

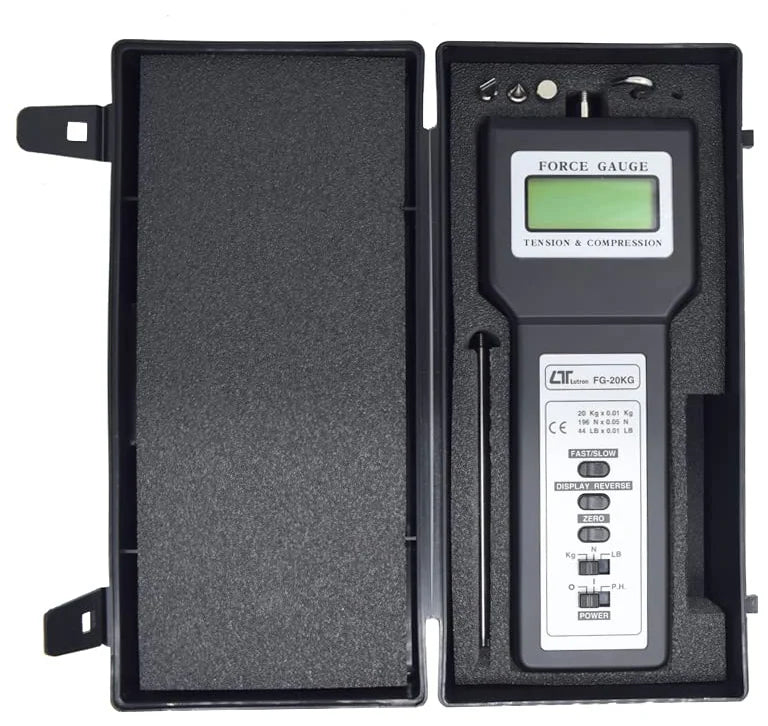

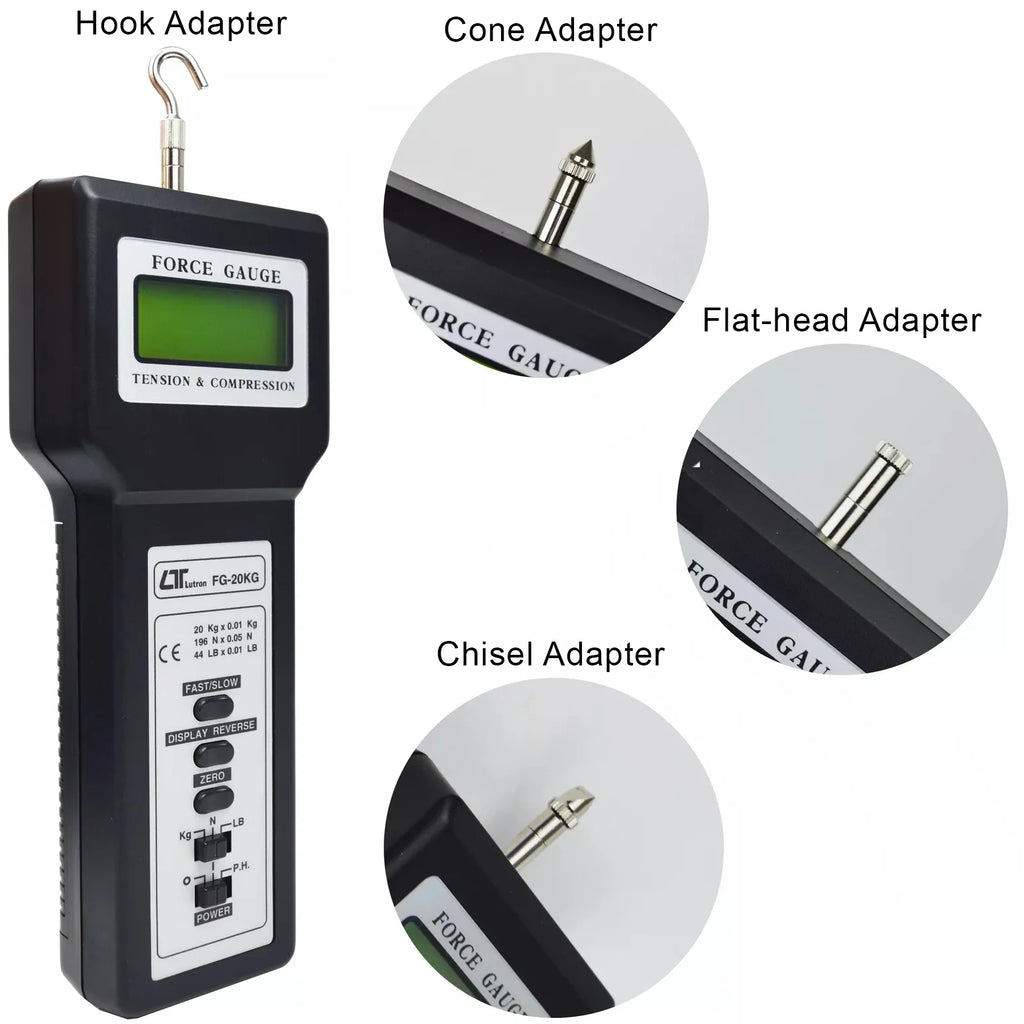

  • Included accessories: Flat-head adapter, hook adapter, cone adapter, chisel adapter, 120mm extension rod, carrying case, and operating manual

Specifications:

  • Display: 5 Digit LCD, 10mm (0.4") digit height
  • Display Direction: Positive or Reverse direction, selectable via the push button on the front panel
  • Function: Tension & Compression (Push & Pull). Normal force, Peak hold (Max. load)
  • Peak hold: Will freeze the display value of the Peak load (Max. load)
  • Zero: Zero button can be operated for both "normal force" or "peak hold" operation
  • Measure Capacity: 20.00 Kg/44.10 LB/196.10 Newton
  • Resolution: 0.01 Kg/0.01 LB/0.05 Newton
  • Min. Display: 0.01 Kg/0.01 LB/0.05 Newton
  • Accuracy: ±(0.5 % + 2 d), within 23 ± 5
  • Unit select: Kg/LB/Newton
  • Update time:
    • Fast Approx. 0.2 second
    • Slow Approx. 0.6 second
  • Over range Indicator: Display shows " - - - - " when in over range status
  • Overload display: Max. 30 kg
  • Zero/tare Control: Max. full capacity
  • Circuit: Exclusive microprocessor LSI-circuit
  • Full Scale Deflection: Approx. 2.0 mm max.
  • Power Supply: 6 x 1.5 V AA (UM-3) size battery or DC 9V adapter (not included)
  • Power Consumption: Approx. DC 24 mA
  • Transducer: Exclusive load cell
  • Operating Temperature: 0℃ to 50℃ ( 32℉ to 122℉ )
  • Operating Humidity: Less than 80% RH
  • Dimensions: 8.9 x 3.3 x 1.5 inch (227 x 83 x 39 mm)
  • Weight: 1.2 LB with batteries (551g)
  • Mounting Holes: Provided on the back case for easy stand mounting
  • Included accessories: Flat-head adapter, hook adapter, cone adapter, chisel adapter, 120mm extension rod, carrying case, and operating manual
  • Optional Accessories - available separately: Test stand (Model: FS-1001) and Wedge grip (Model: WG-01)
