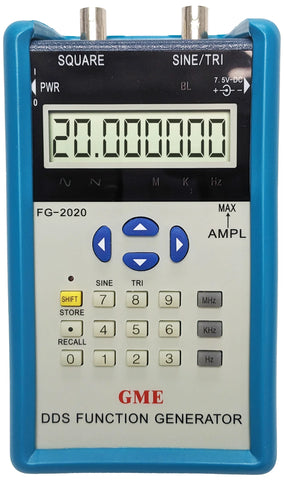

The FG-2020 function generator utilize advance Direct Digital Synthesis (DDS) technology to create highly accurate and stable output signals including sine, square, and triangle waveforms up to 20MHz with 5V peak-to-peak amplitude in a portable hand-held unit.
- 【ADVANCED DDS TECHNOLOGY】 20MHz output frequency and 5V peak-to-peak amplitude, DDS technology with microprocessor control for clean and accurate waveform
- 【DUAL CHANNEL OUTPUT】 Two BNC outputs for simultaneous square waveform and sine/triangle waveform output; Large 8-digit LCD frequency display
- 【EASY TO USE, VERSATILE DESIGN】 Standard 9V battery or AC power adapter (included) operation with low battery indicator; Numerical keypad for simple and accurate frequency setting; Built-in flash memory store/recall up to 50 setup parameters

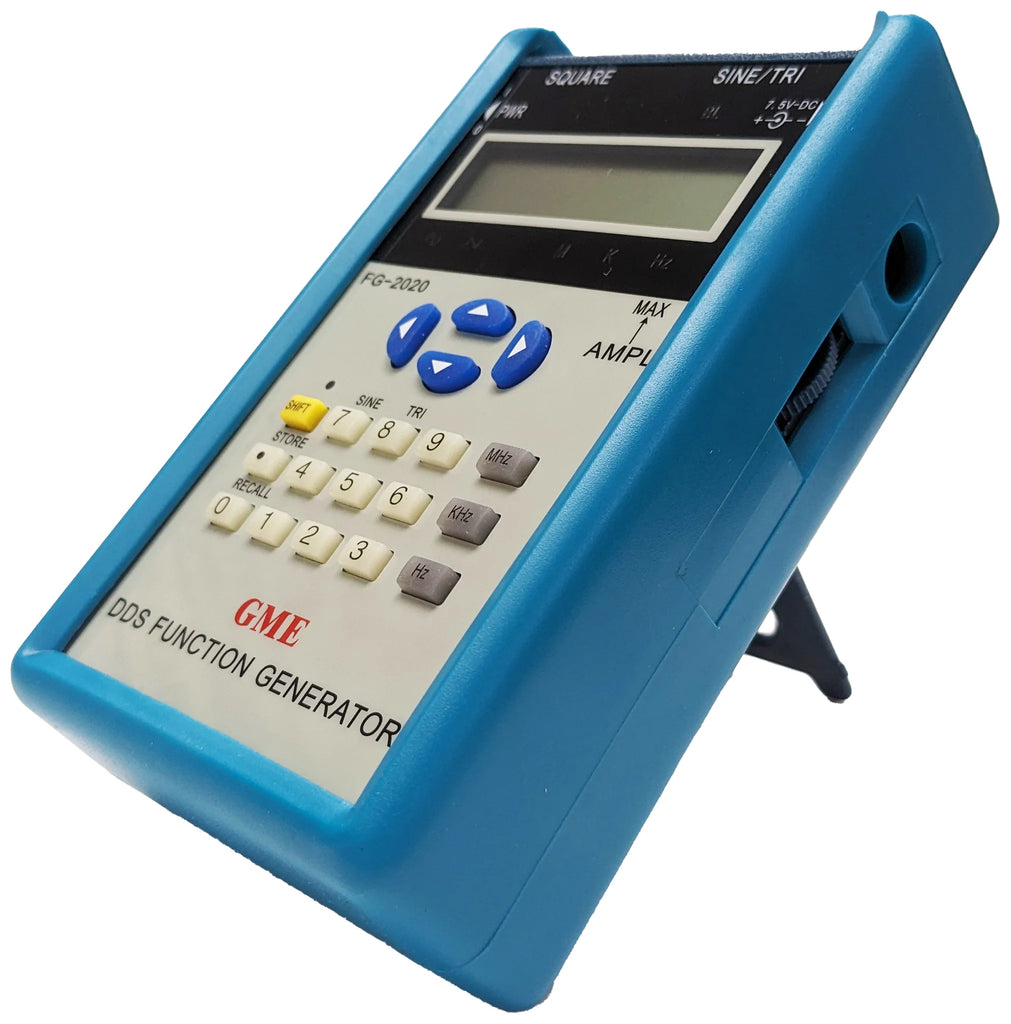

- 【PORTABLE AND RUGGED DESIGN】 Handheld lightweight design ideal for on-the -bench and in-the-field testing, housed in protective impact resistant rubber holster with tilt-stand
Features:
- Up to 20MHz output frequency and 5V peak-to-peak amplitude
- DDS technology with microprocessor control for clean and accurate waveform
- Multiple output waveforms include sine, triangle, and square wave
- Numerical keypad for simple and accurate frequency setting up to 0.2Hz step
- 8-digit LCD frequency display
- Two BNC outputs for simultaneous square waveform and sine/triangle waveform output
- Built-in flash memory for store/recall of up to 50 setup parameters
- Low battery indicator
- Standard 9V battery or 7.5V AC adapter operation
- Easy to use, lightweight, and portable
Technical Specifications:
- Waveforms: Sine, Triangle, Square
- Range: Sine/ Square waveform: DC to 20MHz
- Triangle waveform: DC to 2MHz
- Frequency Resolution:
- 0.2 Hz steps (under 10MHz)
- 1 Hz steps (10MHz to 20 MHz)
- Crystal accuracy: +/- 30ppm
- Two BNC outputs :
- Sine/Triangle wave: 5Vp-p (no load) with variable amplitude control
- Square wave: Fixed 5Vp-p
- Output impedance: 50 ohm
- Store/Recall Memory Size: Store/Recall 50 setup parameters (both frequency value and waveform type)
- Power: Standard 9V battery or external 7.5V AC power adapter (included)
- Dimensions: 5.7”(H) x 3.8”(W) x 1.5”(D)

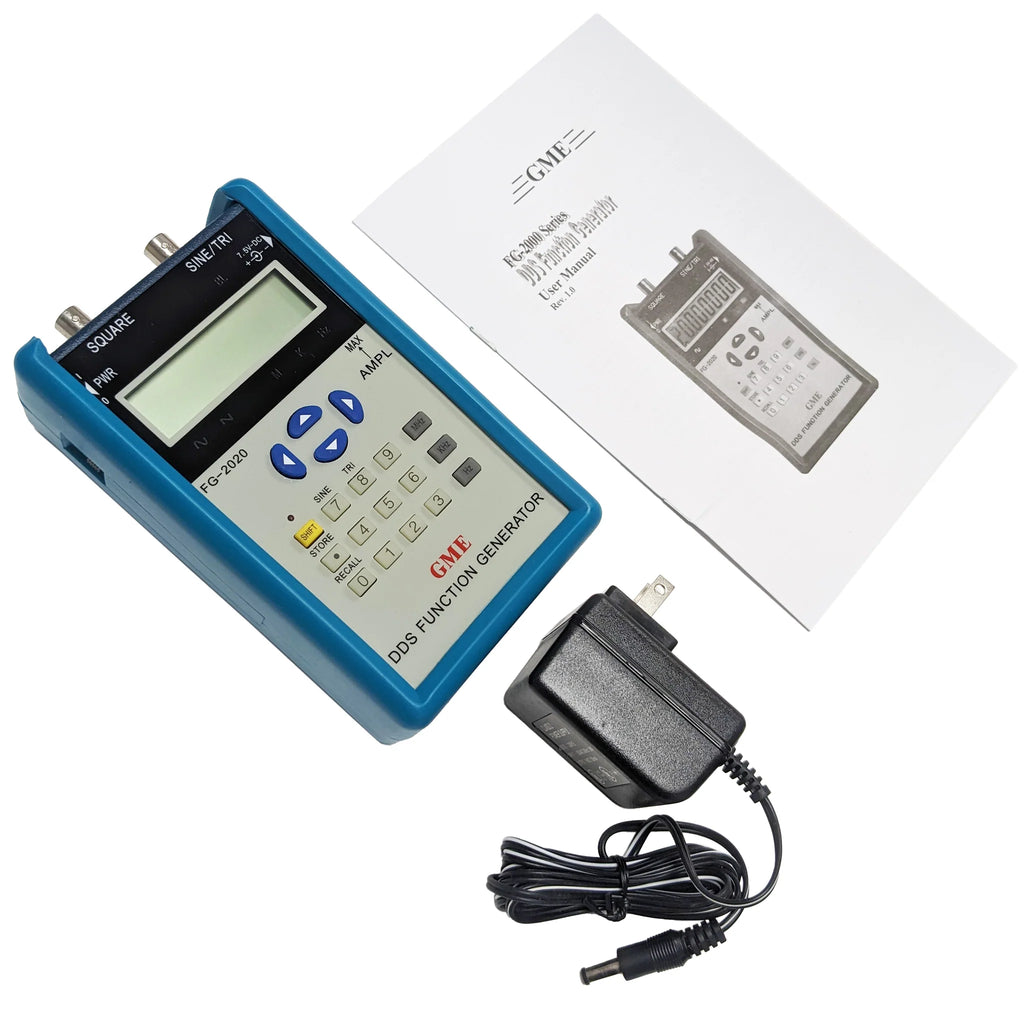

Package Contents:
- One (1) - FG-2020 DDS Function Generator
- One (1) - Protective Rubber Holster
- One (1) - 7.5V AC power adapter
- One (1) - User Manual
