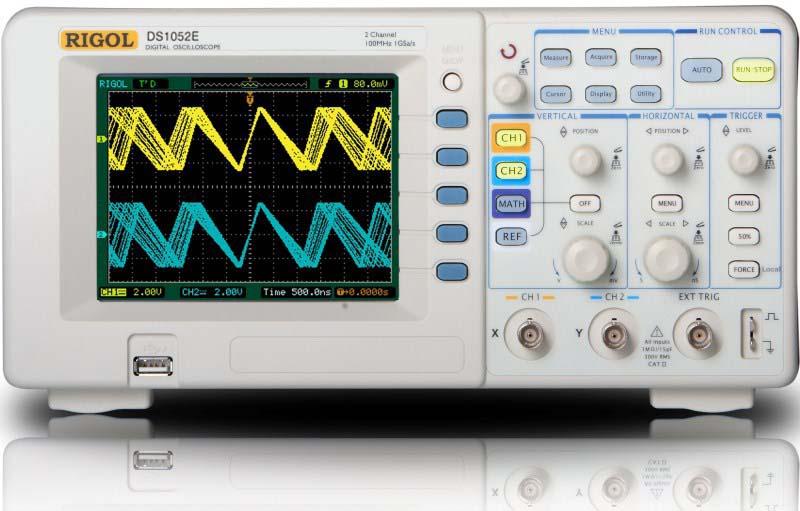

Rigol Model DS1052 50MHz Oscilloscope

SKU: 01DS1052E

  • Sale
  • Regular price $259.00


The DS1000E Series Digital Oscilloscopes set a new standard for technology and capability. With features including 1 million points of deep memory, FFTs, record and replay, roll mode, alternate trigger mode, and adjustable trigger sensitivity the DS1000E is the new bench standard.

  • 2 Analog channels + external trigger
  • 1 Million point deep memory
  • 1 GSa/sec max sample rate
  • 5.7� TFT QVGA (320X240) with 64K color LCD backlit display
  • Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate
Model DS1052E
Bandwidth 50 MHz
Analog Channels 2
Vertical Sensitivity 2 mV/div - 10V/div
Real-time Sample Rate 1 GSa/s?each channel??500 MSa/s?dual channels?
Equivalent Sample Rate 10 GSa/s
Memory Depth Mode Capture rate Common Long memory
One channel 1 GSa/s 16 kpts N/A
500 MSa/s 16 kpts 1 Mpts
Dual channels 500 MSa/s250 MSa/s
or less
8 kpts8 kpts N.A.512 kpts
Standard Interface USB Host & Device, RS-232, P/F Out
Vertical Resolution 8 bits
Math ?, ?, �, FFT
Max Input Voltage All inputs 1M??15pF 300 V RMS CAT?
Cursor Measurements Manual, Track and Auto Measure modes
