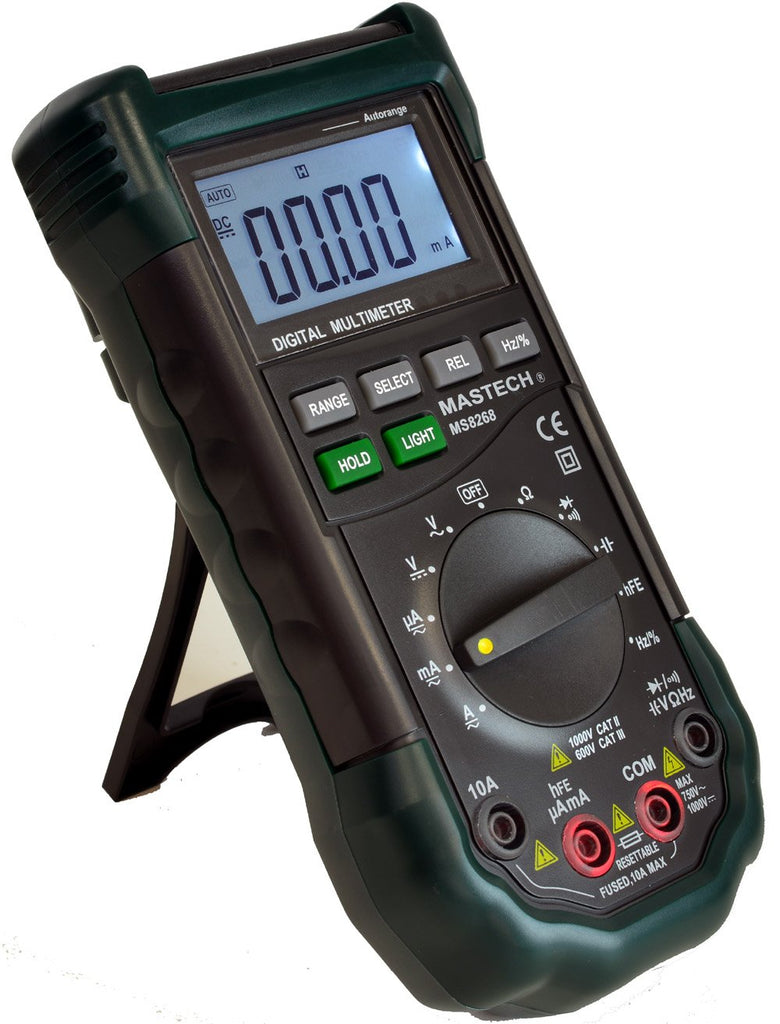

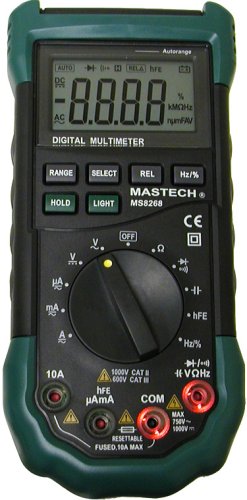

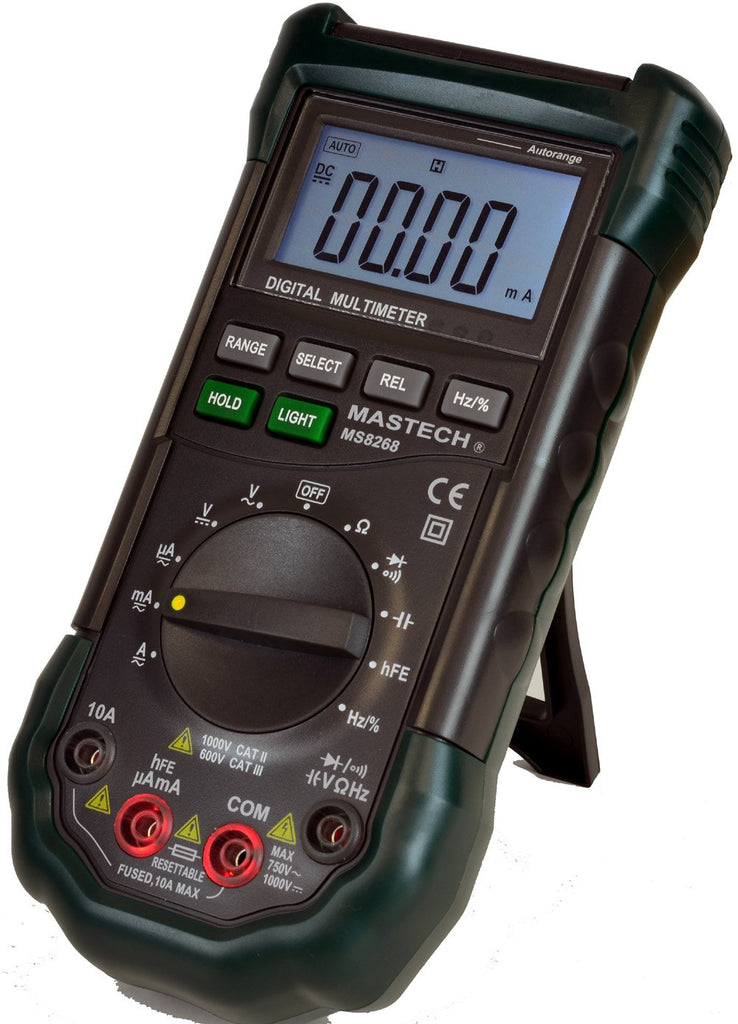

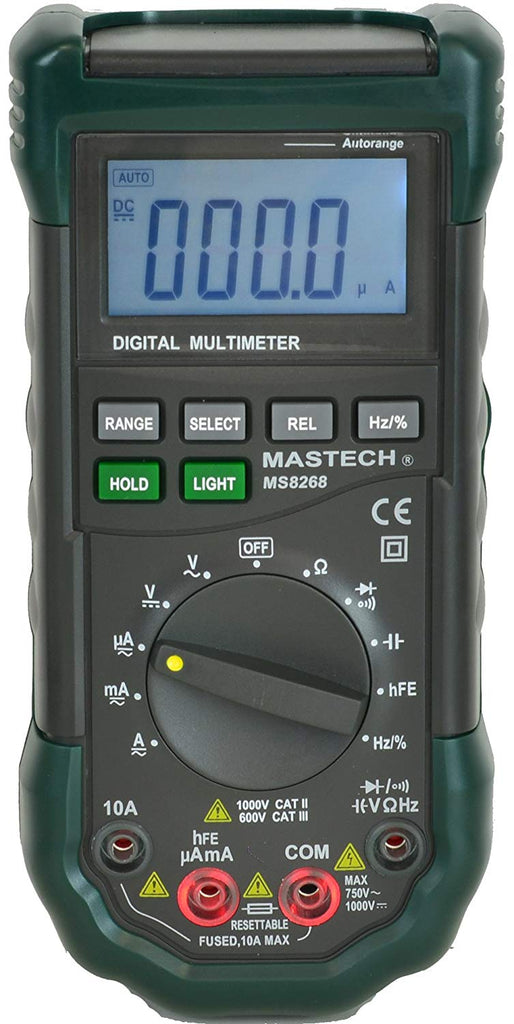

RSR Digital Multimeter- Autoranging with Resettable Fuse

SKU: 01DMMS8268

  • Sale
  • Regular price $45.95


Features:

  • 3 3/4 digits LCD display
  • LED / Sound Warning when incorrect banana jacks are used relative to function switch setting (volt, amp, resistance)
  • Data hold and LCD back lit
  • Manual ranging and auto range mode
  • Safety as per IEC1010-1 Cat. II 600V and Cat. 1000V Cat. II

Technical Specifications:

  • DCV: 400mV - 1000V, 5 ranges
  • ACV: 400mV - 750V, 5 ranges
  • Resistance: 400-40M, 6 ranges
  • DC and AC Current: 400μ - 10A, 5 ranges
  • Capacitance: 4n - 200u, 6 ranges
  • Frequency: to 200KHz
  • Resettable fuse inside
  • Diode and transistor test, audible continuity
  • Dimension and Weight: 195 x 92 x 55mm; 400g
  • Battery: 15.V AAA

Specs

Datasheet

Manual
