Digilent

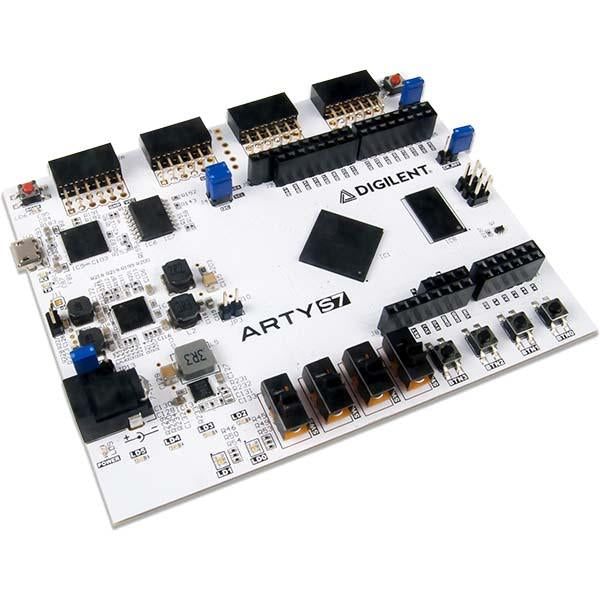

Arty S7-50: Spartan-7 FPGA for Makers and Hobbyists

SKU: 01DIG410352

  • Sale
  • Regular price $109.00


The Arty S7 board features new Xilinx Spartan-7 FPGA and is the latest member of the Arty family for Makers and Hobbyists.The Spartan-7 FPGA offers the most size, performance, and cost-conscious design engineered with the latest technologies from Xilinx and is fully compatible with Vivado Design Suite. Putting this FPGA in the Arty form factor provides users with a wide variety of I/O and expansion options. Use the dual row Arduino® connectors to mount one of the hundreds of hardware compatible shields available, or use the Pmod ports with Digilent's pre-made Pmod IP blocks for a more streamlined design experience. Arty S7 was designed to be MicroBlaze ready and comes out of the box ready to use with Xilinx's WebPACK licensing.



Features:

  • FPGA part: XC7S50-CSGA324
  • 1 MSPS On-chip ADC: Yes
  • Logic Cells: 52,160
  • Slices: 8,150
  • Flip-flops: 65,200
  • Block RAM (Kbits):2,700
  • Clock Management Tiles: 5
  • DSP Slices: 120
  • Internal clock speeds exceeding 450MHz;
  • On-chip analog-to-digital converter (XADC).
  • Programmable over JTAG and Quad-SPI Flash
    • System Features:
    • 256 MB DDR3L with a 16-bit bus @ 650 MHz
    • 128 Mbits Quad-SPI Flash
    • 100 MHz External Clock
    • USB-JTAG Programming circuitry (USB Micro cable required, NOT INCLUDED).
    • Powered from USB or any 7V-15V source

    • System Connectivity:
    • USB-UART Bridge

    • Interaction and Sensory Devices
    • 4 Switches
    • 4 Buttons
    • 1 Board Reset Button
    • 1 FPGA Reset Button
    • 4 Green LEDs
    • 2 RGB LEDs

    • Expansion Connectors:
    • 4 Pmod connectors
    • Arduino/chipKIT Shield connector
