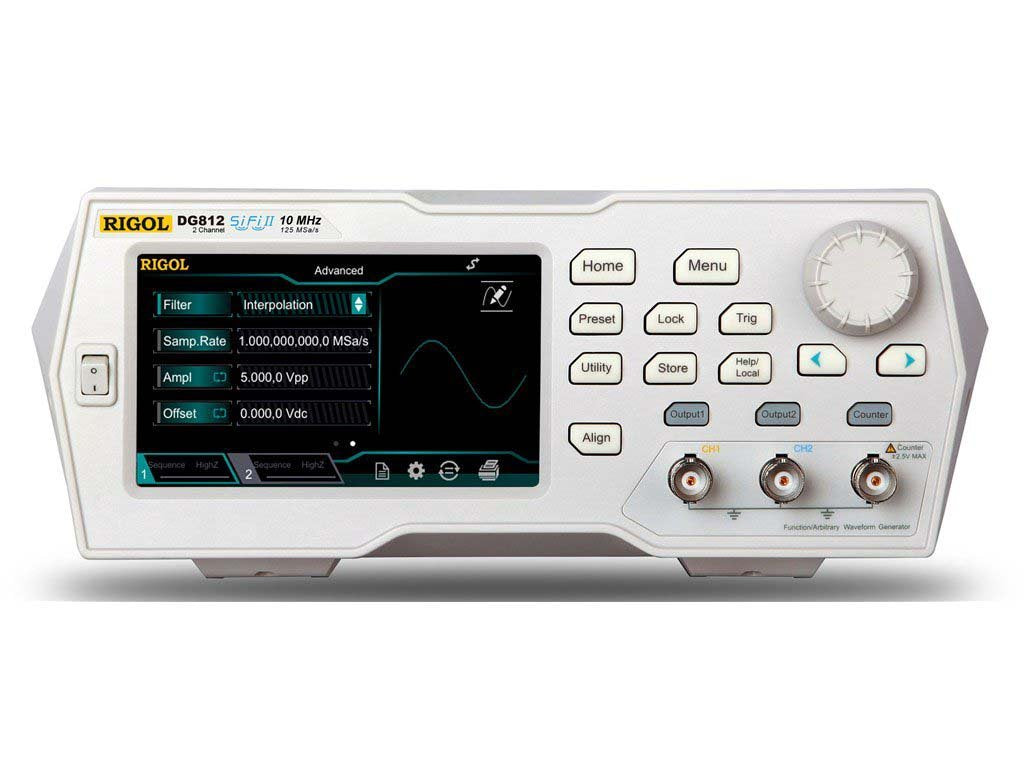

Rigol DG812 - 10 MHz Function / Arbitrary Waveform Generator, 2 Channel

The DG800 series redefines the entry level waveform generator by bringing advanced capabilities like 16 bit high resolution, intuitive touch screen control, and a quiet fanless design to our most affordable line of generators. Add SiFi II point-to-point sampling technology and 2 MPts of standard arb memory and the DG800 Series delivers a powerful low cost generator for students and engineers alike.



Features:

• 10 MHz, two channel function generator
• 2 Mpts memory depth (upgradeable to 8 Mpts)
• High frequency stability: 1 ppm; low phase noise: -105 dBc/Hz
• Built-in high-order harmonic generator (at most 8-order harmonics)
• Built-in 7 digits/s, 240 MHz bandwidth full featured frequency counter
• 160 built-in arbitrary waveforms, covering common signals in engineering, medical and automotive electronics, math processing, and much more
• Sample rate up to 125 MSa/s, vertical resolution 16 bits
• Arbitrary waveform sequence editing function available; arbitrary waveforms also can be generated through PC software
• Various analog and digital modulation functions: AM, FM, PM, ASK, FSK, PSK, and PWM
• Standard waveform combine function - capable of outputting specified waveforms combined with basic waveforms
• Standard channel tracking function - when enabled, all parameters of both channels are updated based on user's configurations
• USB HOST and DEVICE interface (standard);
• USB-GPIB function supported
• 4.3" TFT color touch screen
