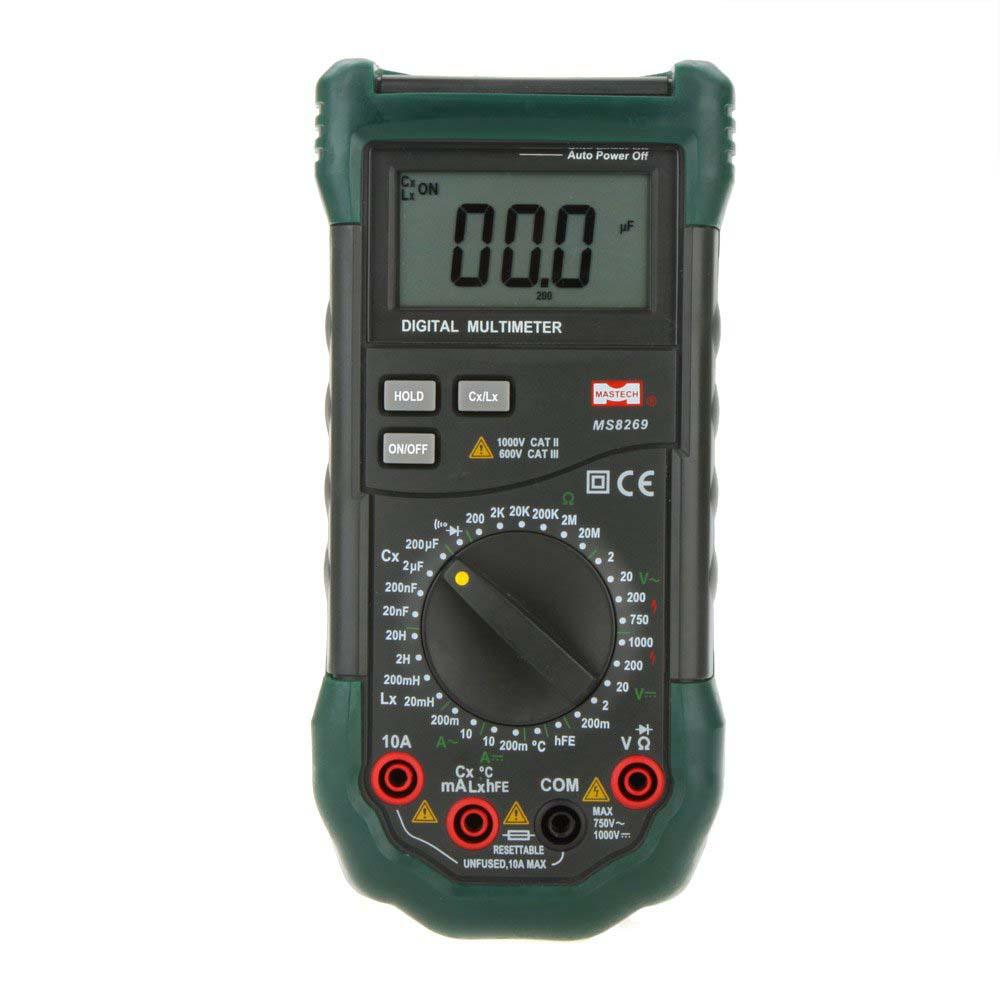

Digital Multimeter LCR Handheld, Meter Resistance Capacitance Inductance & Temperature Tester

SKU: 01DMMS8269

  • Sale
  • Regular price $42.50


MS8269 Digital Multimeter LCR Meter AC/DC Voltage Current Resistance Capacitance Temperature Inductance Tester

Features:

  • Large 2000 counts LCD display
  • Tests AC/DC voltage and AC/DC current, resistance, capacitance
  • Transistor (hFE) check, diode and Humming ON/OFF test
  • Inductance measurement up to 20H
  • Type-k thermocouple contact temperature measurement
  • Data hold
  • Safety rating up to CAT.II 1000V/CAT.III 600V
  • (Batteries sold separately)
Specifications:
  • DC Voltage: 200mV/2V/20V/200V+-(0.5%+1), 1000V+-±(0.8%+2 )
  • AC Voltage: 2V/20V/200V+-(0.8%+3), 750V ±(1.2%  +3 )
  • Resistance: 200Ω±(0.8% +3 ), 2kΩ/20kΩ/200kΩ/2MΩ±(0.8%+1), 20MΩ±(1.0% +2)
  • DC Current: 200mA ±(1.5% +1 ), 10A ±(2.0% +5 )
  • AC Current: 200mA ±(1.8%+3), 10A ±(3.0%  +7 )
  • Transistor: hFE,The display outputs the approximate value of hFE, (0-1000)
  • Diode test: Range 1V,  Resolution 0.001V
  • Humming ON/OFF: The humming of the built-in buzzer means that the measured resistance is no greater than about 60Ω
  • Capacitance: 20nF/200nF/2μF±(4% +8 ), 200μF±(4% +15 )
  • Inductance: 20mH/200mH/2H/20H±(3% +8)
  • Temperature: -20 ° C~0 ° C±(5.0%  +4 ), 1 ° C~400 ° C±(1.0% +3 ), 401 ° C~1000 ° C±2.0%
