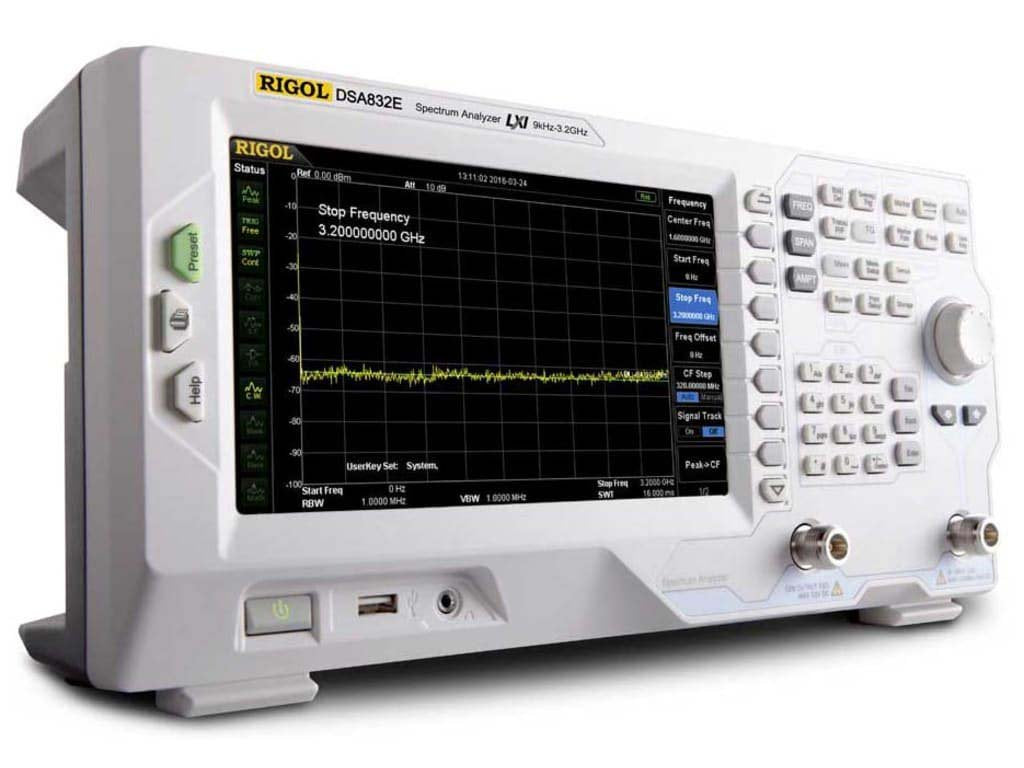

DSA832E-TG Spectrum Analyzer (9kHz to 3.2GHz) with Tracking Generator

Rigol's DSA800 Series spectrum analyzers redefine the product category by setting new standards for performance and price. The DSA800 family features a widescreen display, compact design, and easy-to-use interface making it ideal for benchtop or field apps in RF and wireless testing and production. The spectrum analyzer offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels. The DSA832, DSA832E, and DSA875 have a DANL (displayed average noise level) down to -161 dBm (typical). In addition, Rigol offers great options including an EMI filter and quasi-peak detector kit, VSWR measurement package, and tracking generator ("-TG" version) for all of these models. A Preamplifier is standard on all models in the family. Whether your application is radio verification at 455 MHz or monitoring the 3rd harmonic of 2.4 GHz signals find the right spectrum analyzer in the DSA800 Series.

Features:

• DSA832E-TG Spectrum Analyzer, 9 kHz to 3.2 GHz with Tracking Generator
• All-Digital IF Technology
• Frequency Range from 9 kHz to 3.2 GHz
• Min. -148 dBm Displayed Average Noise Level (Typ.)
• Min. Level Measurement Uncertainty <1.0 dB
• 10 Hz Minimum Resolution Bandwidth
• Up to 3.2 GHz Tracking Generator (DSA832E-TG)
• Advanced Measurement Functions (Opt.)
• EMI Filter Quasi-Peak Detector Kit (Opt.)
• VSWR Measurement Kit (Opt.)
• PC Software (Opt.)
• Optional RF TX/RX Training Kit
• Optional RF Accessories (Cable, Adaptor, Attenuator, Bridge ...)
• Complete Connectivity: LAN (LXI), USB Host Device, GPIB (Opt.)
• 8 Inch WVGA (800 x 480) Display
• Compact Size, Light Weight Design
