HiTech

Standard Servo Motor, 3kg.cm Torque at 4.8 Volt / 3.2kg.cm at 6V, Weight: 36g

SKU: 29SV40

  • Sale
  • $8.50

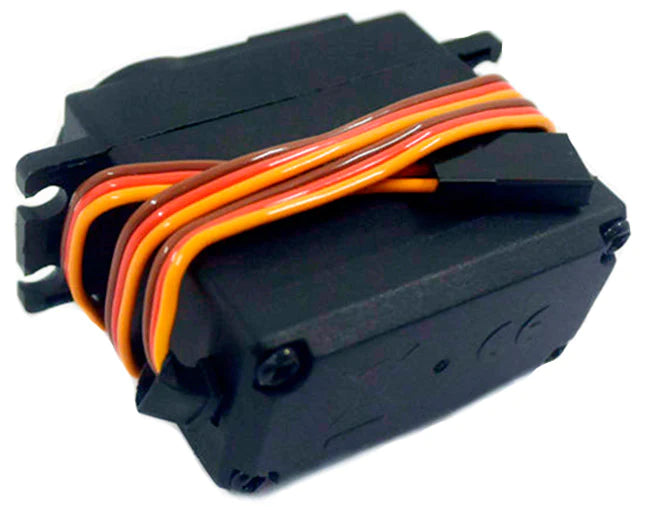

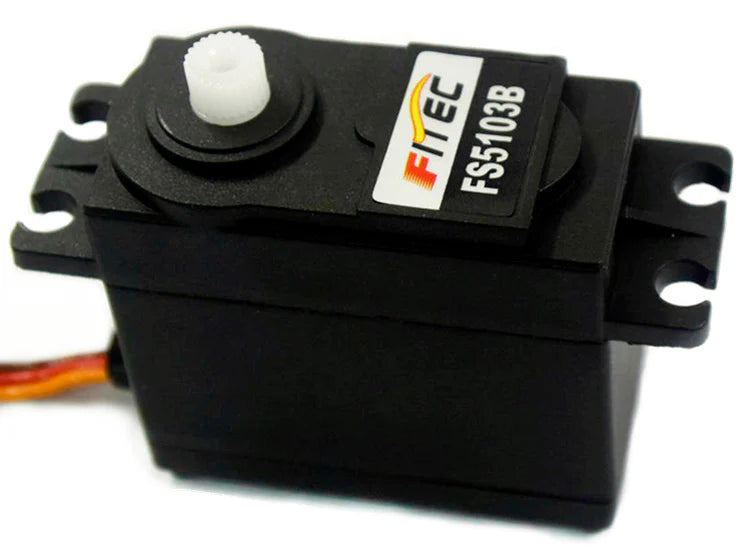

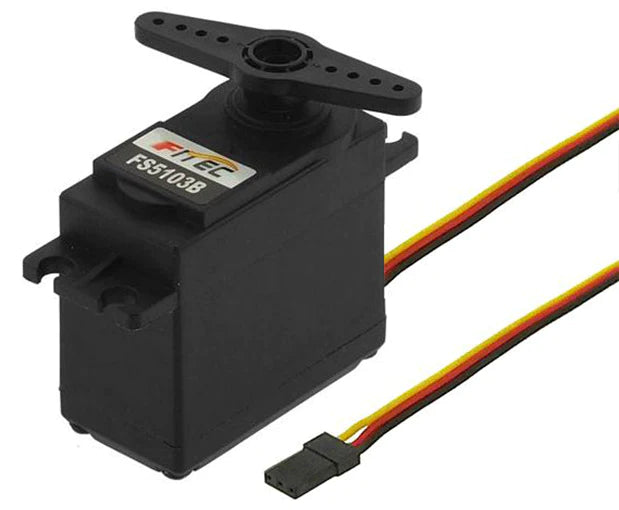

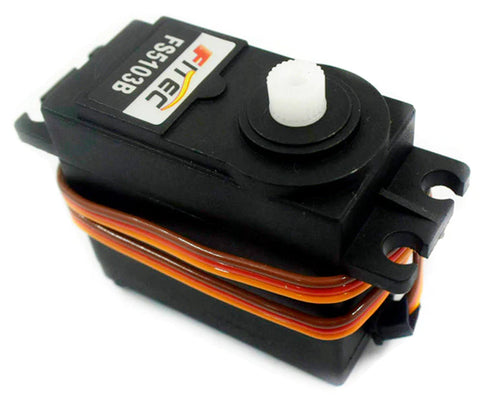

  • Standard servo motor ideal for robotic projects
  • Operating Voltage: 4.8V~6V
  • Dimensions: 40.8 × 20.1 × 38 mm
  • Weight: 36 g
  • Operating Speed:
    • 0.18sec/60degree (4.8V)
    • 0.16sec/60degree (6V)
  • Stall Torque:
    • 3kg.cm/41.74oz.in(4.8V)
    • 3.2kg.cm/44.52oz.in(6V)
  • Control System: Analog
  • Direction: CCW
  • Operating Angle: 120 degree
  • Required Pulse: 900us-2100us
  • Bearing Type: 2BB
  • Gear Type: Plastic
  • Motor Type: Metal
  • Connector Wire Length: 30 cm

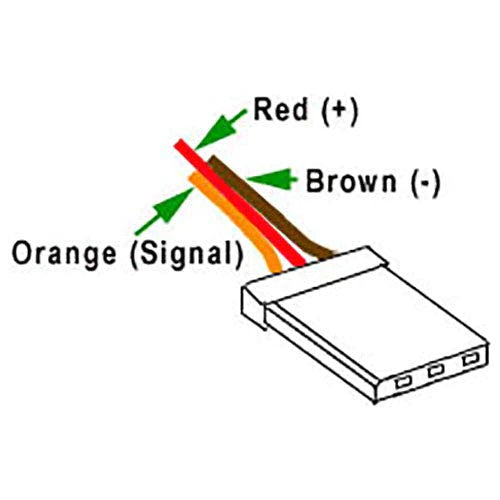

  • JR style connector (Futaba compatible)
