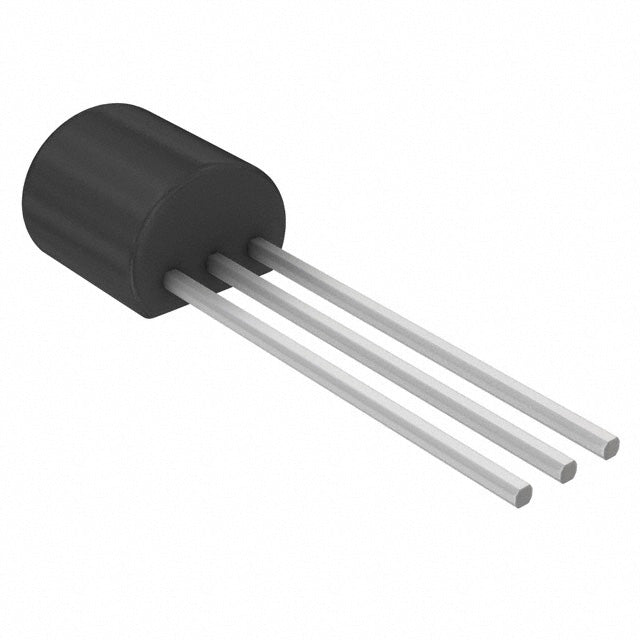

Low Voltage, Precision Centigrade Temperature Sensor (Local -40°C ~ 125°C 10mV/°C)

Features:

• Low voltage operation (2.7 V to 5.5 V)
• Calibrated directly in °C
• 10 mV/°C scale factor

• ±2°C accuracy over temperature (typ)
• ±0.5°C linearity (typ)
• Stable with large capacitive loads
• Specified −40°C to +125°C, operation to +150°C
• Less than 50 µA quiescent current
• Shutdown current 0.5 µA max
• Low self-heating
• Qualified for automotive applications

Specifiactions:

• Sensing Temperature - Local: -40°C ~ 125°C

• Output Type: Analog Voltage

• Voltage - Supply: 2.7V ~ 5.5V

• Resolution: 10mV/°C

• Features: Shutdown Mode

• Accuracy - Highest (Lowest): ±3°C (±4°C)

• Test Condition: 25°C (-40°C ~ 125°C)

• Operating Temperature: -40°C ~ 150°C

• Mounting Type: Through Hole

Applications:

• Environmental control systems
• Thermal protection
• Industrial process control
• Fire alarms
• Power system monitors
• CPU thermal management
