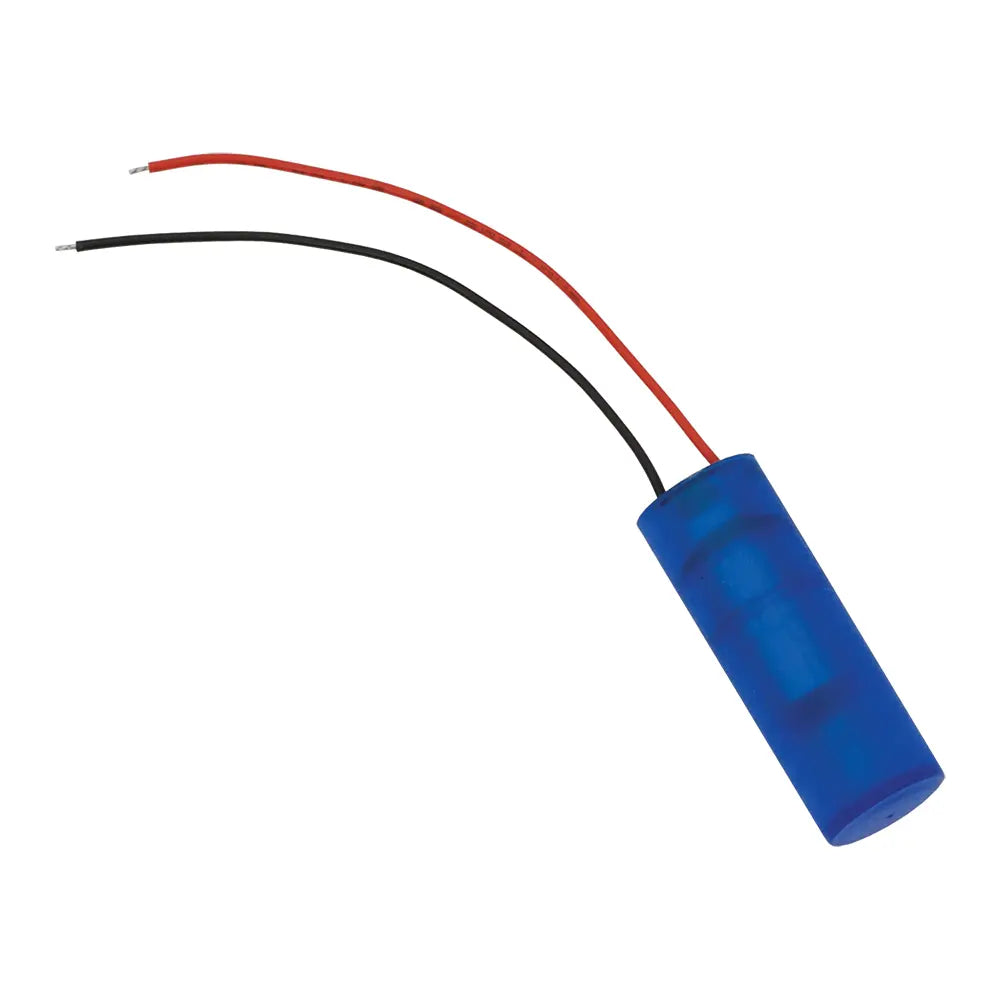

This is a fully encapsulated DC vibration motor that has many applications in today’s market. This motor can be used to provide feedback in a human interface system where touch is utilized. The motors are small and compact which allows you to install them into an application where space is a vital commodity. These are quality motors that can be used in the medical, automotive, and consumer applications and products.
Features:
- Mechanical Noise of 50 dB(A) Max so you can get the feed back you desire without a lot of extra noise
- Rotation can be CW or CCW, giving you more applicable capabilities
- Rated at 3 VDC, giving you a low-power solution for user and application feedback
Application Ideas:
- Touch Screen Feedback
- Simulations
- Video game and other feedback applications
Details:
- Wire Length: 4.76 cm
- Voltage requirements: 2.2 ~3.6 VDC
- Rated Current: 250 mA @ rated voltage
- Stall Current: 680 mA @ rated voltage
- Dimensions: .88 cm (diameter) X 2.49 cm (length)
- Operating temp range: -22 to +158 °F (-30 to +70 °C)
