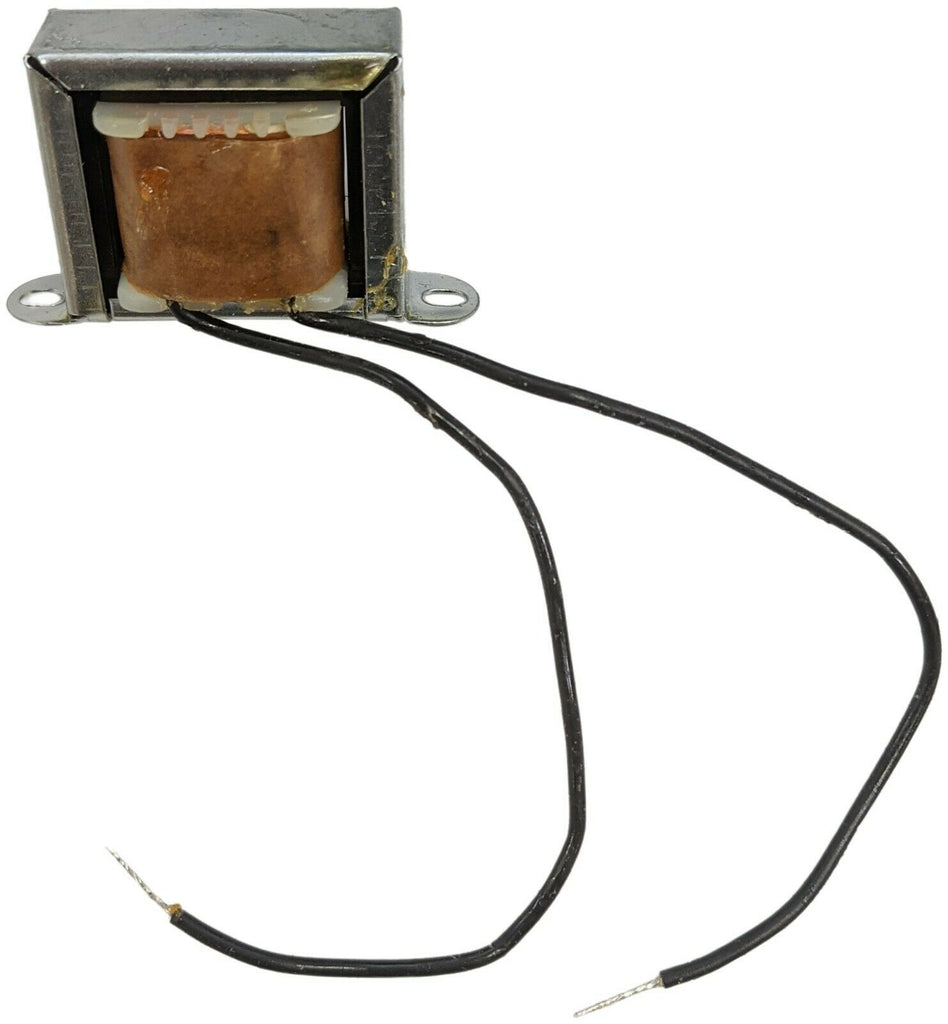

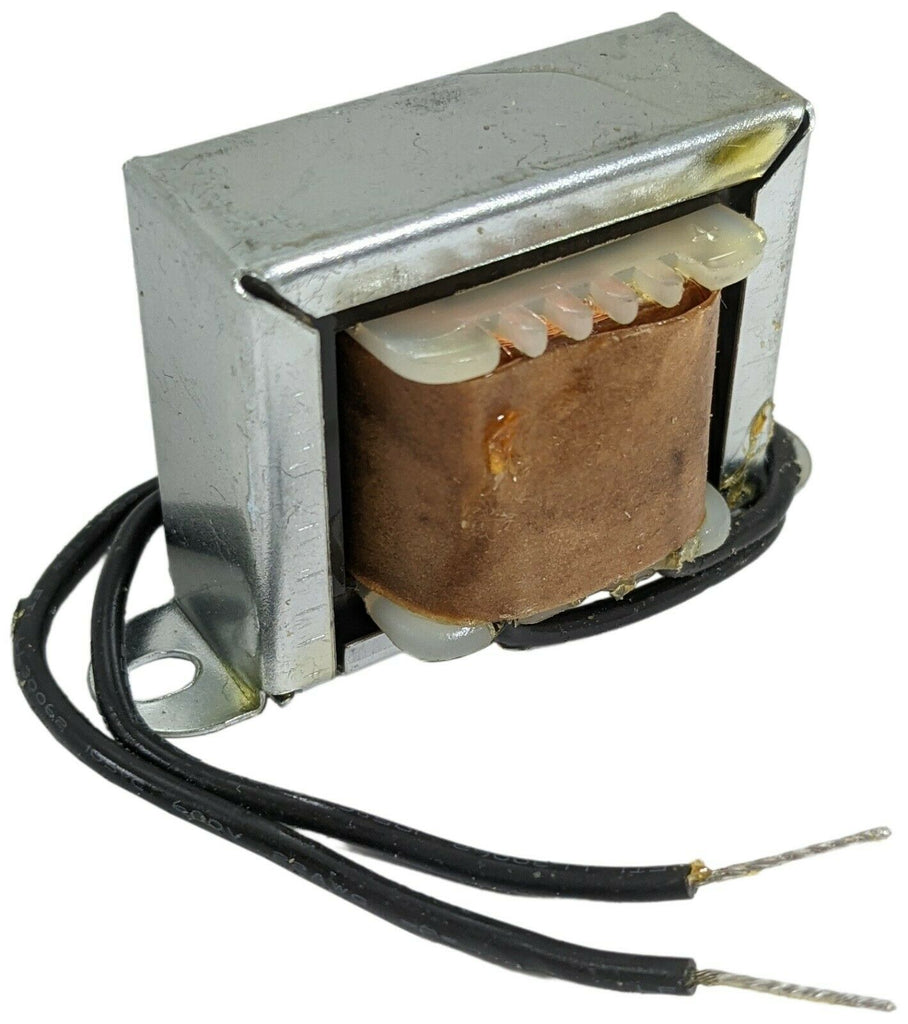

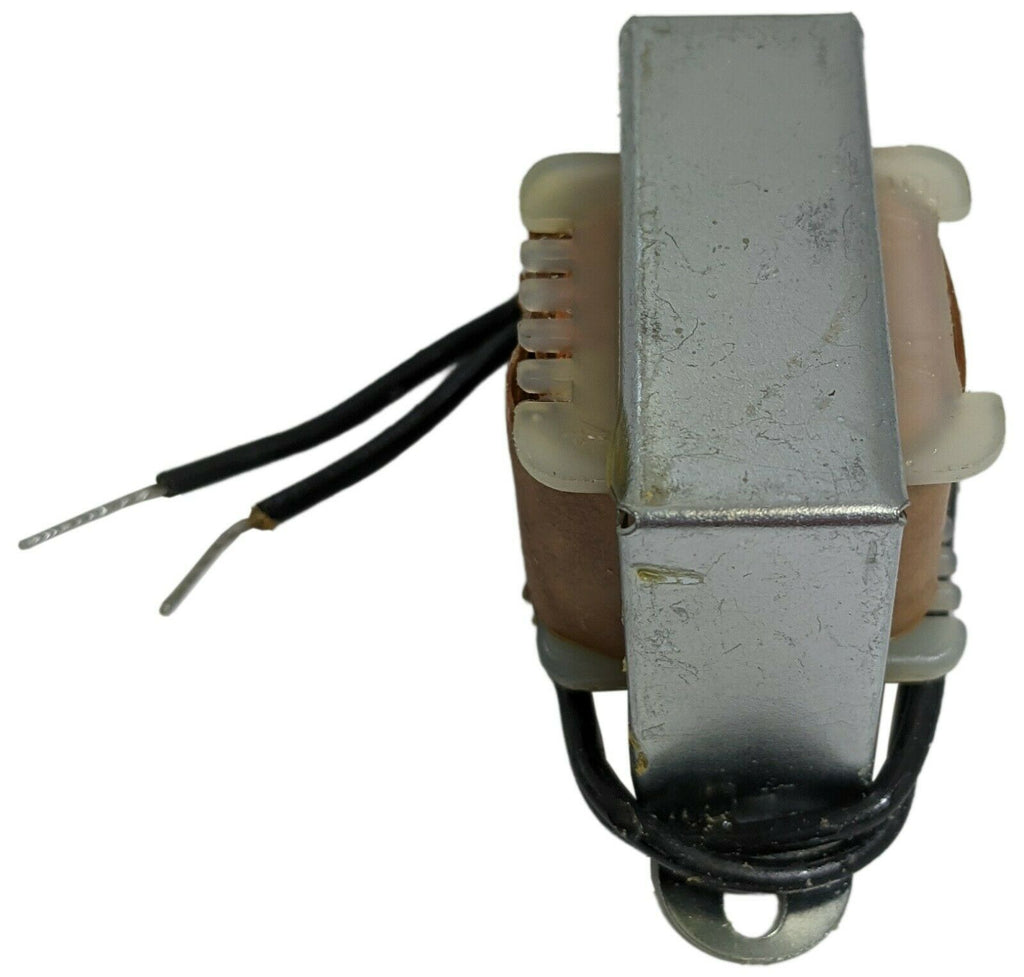

Filter Choke - Value: 7.0H, DC mA: 75, DC RES: 240

• Value: 7.0H, DC mA: 75, DC RES: 240
• Economical "open bracket" channel mount filter chokes are perfect for high voltage power supply filtering
• Tolerance of 15% on both inductance & resistance.
• Every unit is Hipot tested (100%) at 1,500 VAC
• 5" long leads. Measures 2.4" x 1.2" x 1.3". Mounting holes are about 2" apart.

Value: 7.0H, DC mA: 75, DC RES: 240. Economical "open bracket" channel mount filter chokes are perfect for high voltage power supply filtering. Tolerance of 15% on both inductance and resistance. Inductance measured at rated D.C. current. 5" long leads.

Measures 2.4" x 1.2" x 1.3". Mounting holes are about 2" apart. Weighs 5.59 ounces.
