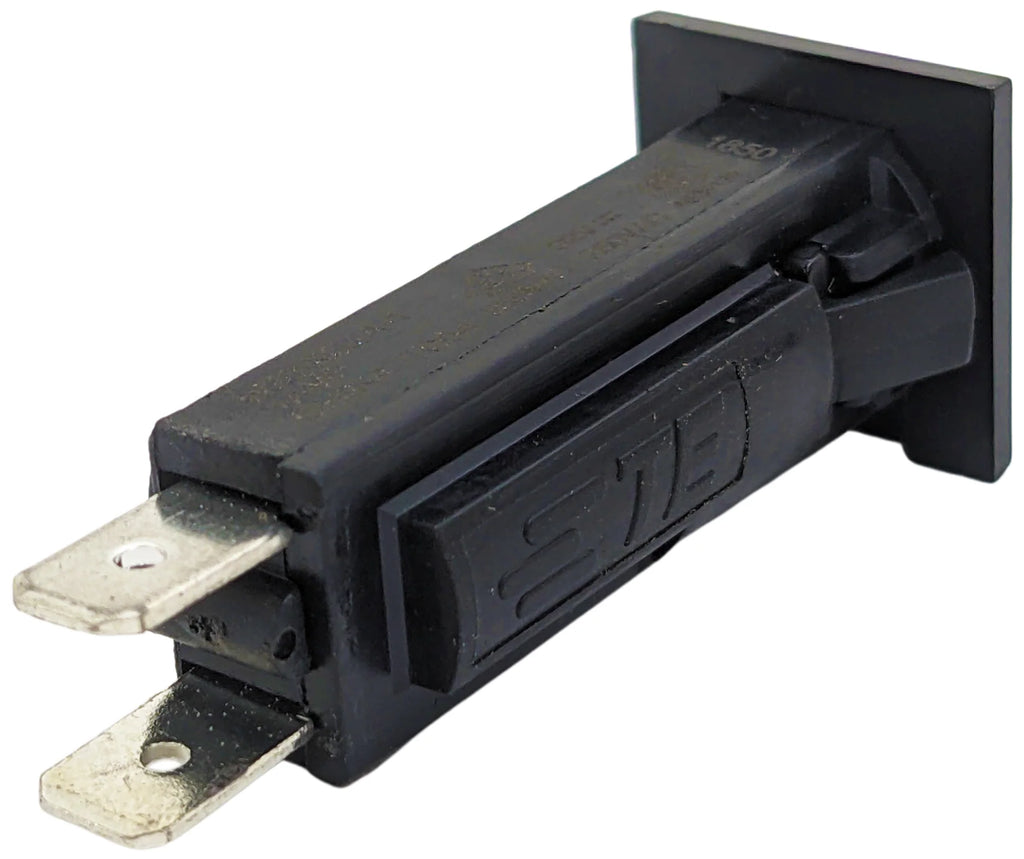

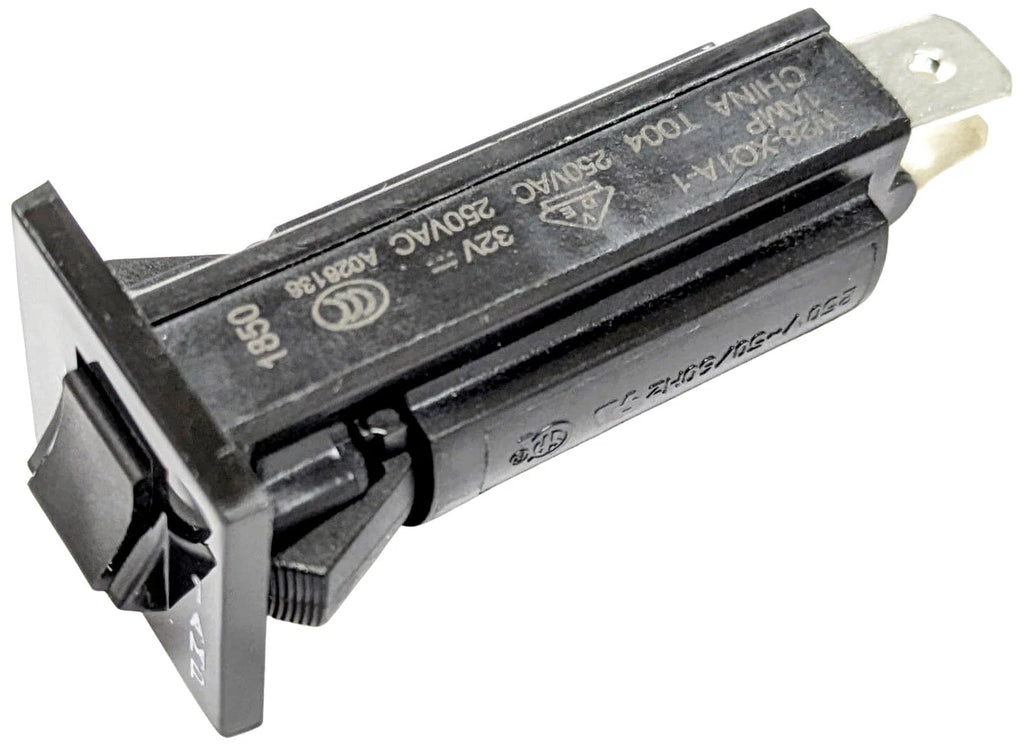

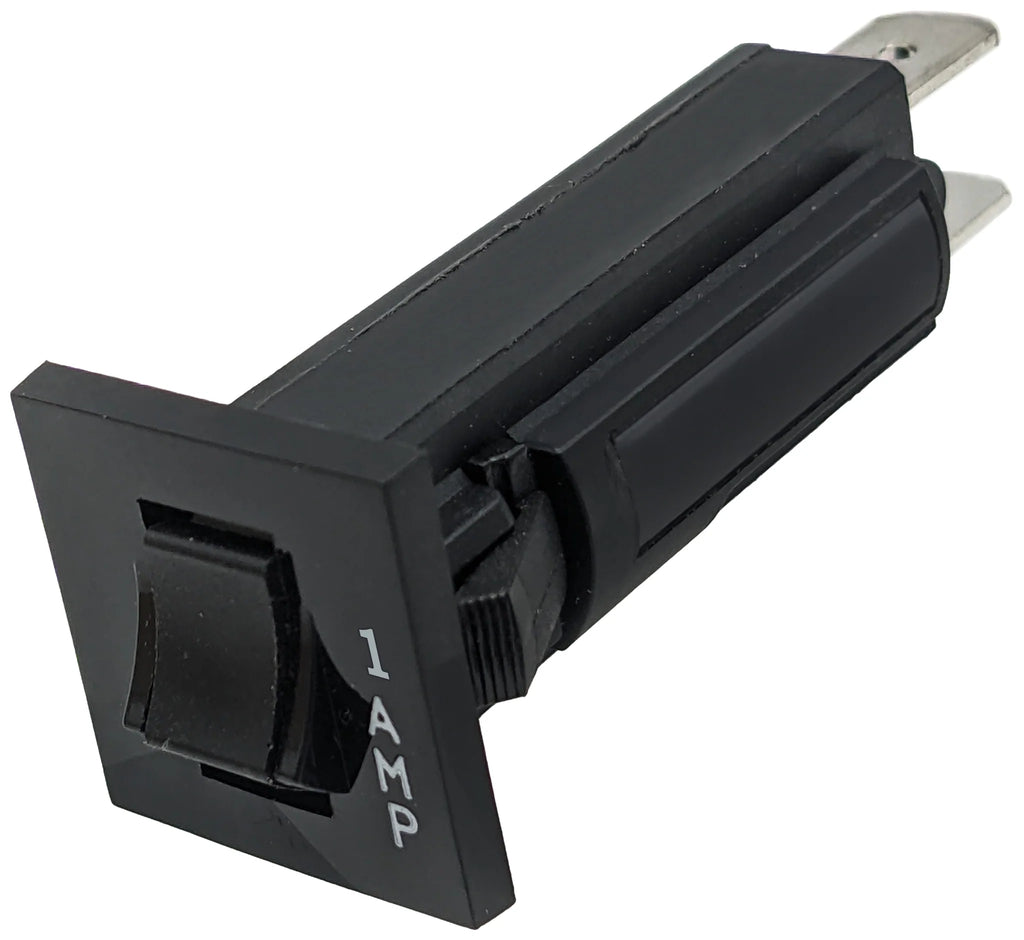

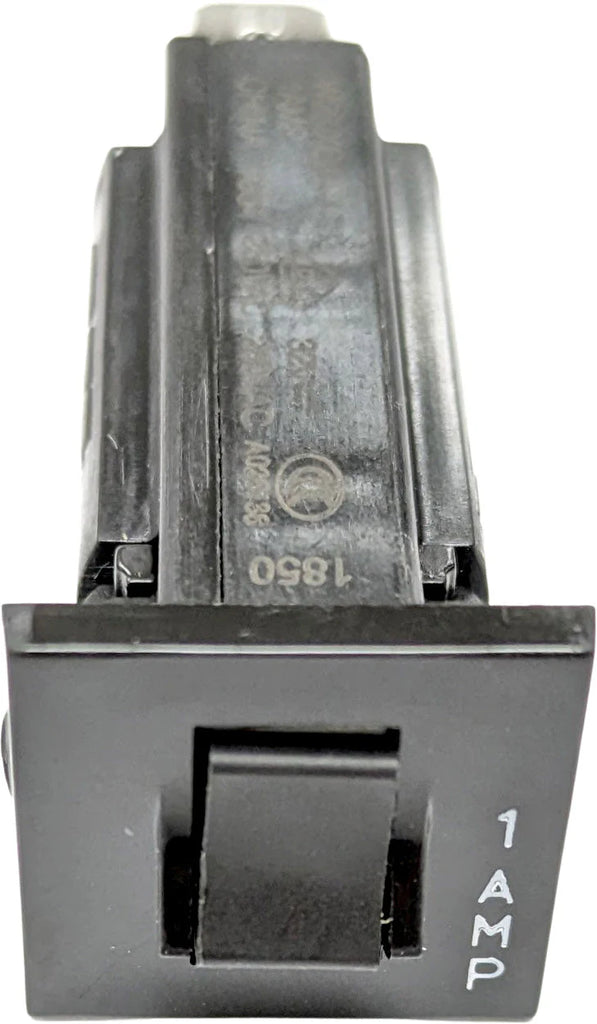

1A Thermal Circuit Breaker, 1 Pole, 250V AC / 32V DC, Snap-in Panel Mount with Push to Reset Actuator (W28-XQ1A-1)

• 1 A circuit breaker with 0.250-inch quick connect, snaps into 0.032 to 0.062-inch thick panel
• Number of Poles: 1
• Overload: Thermal
• Max voltage ratings 250V AC, 32V DC
• Dielectric strength 1500V AC
• Trip Time: 4.5 to 28 s
• High precision and low cost. Replaces slow blow glass cartridge fuse.
• Button extends for visual trip indication
• Mounting Hole Size: Dia. 0.635 x H 0.625 in

The W28-XQ1A-1 is a 1A push to reset fuse holder type Thermal Circuit Breaker, calibration will continuously carry 100% of rating, may trip between 101% and 174% of rating, must trip at 175% in one hour at 25°C. Six times rated current is resettable overload capacity, over 1500V RMS dielectric strength. Snaps into panel from front mounting, 250VAC/32VDC voltage rating. 0.250-inch quick connect will mount in 0.032 to 0.062-inch thick panel. Replaces slow blow glass cartridge fuse.

Product Features:

• Terminal Configuration : 6.35 [.25] Straight Quick Connect Tab
• Actuator Type : Push to Reset
• Circuit Breaker Type : Thermal
• Circuit Breaker Style : Fuse Holder Type

Configuration Features:

• Circuit Function : Series Trip
• Number of Poles : 1

Electrical Characteristics:

• Operating Voltage (VAC): 250
• Operating Voltage (VDC): 32
• Current Rating (A): 1
• Interrupt Capacity : 1000A @ 250VAC/32VDC

Body Features:

• Actuator Color : Black
• Bezel Color : Black

Contact Features:

• Trip Time at 200% (seconds): 4.5 – 28

Mechanical Attachment:

• Mounting Options : Snap-In Panel Mount
• Mounting Bushing : None

Dimensions:

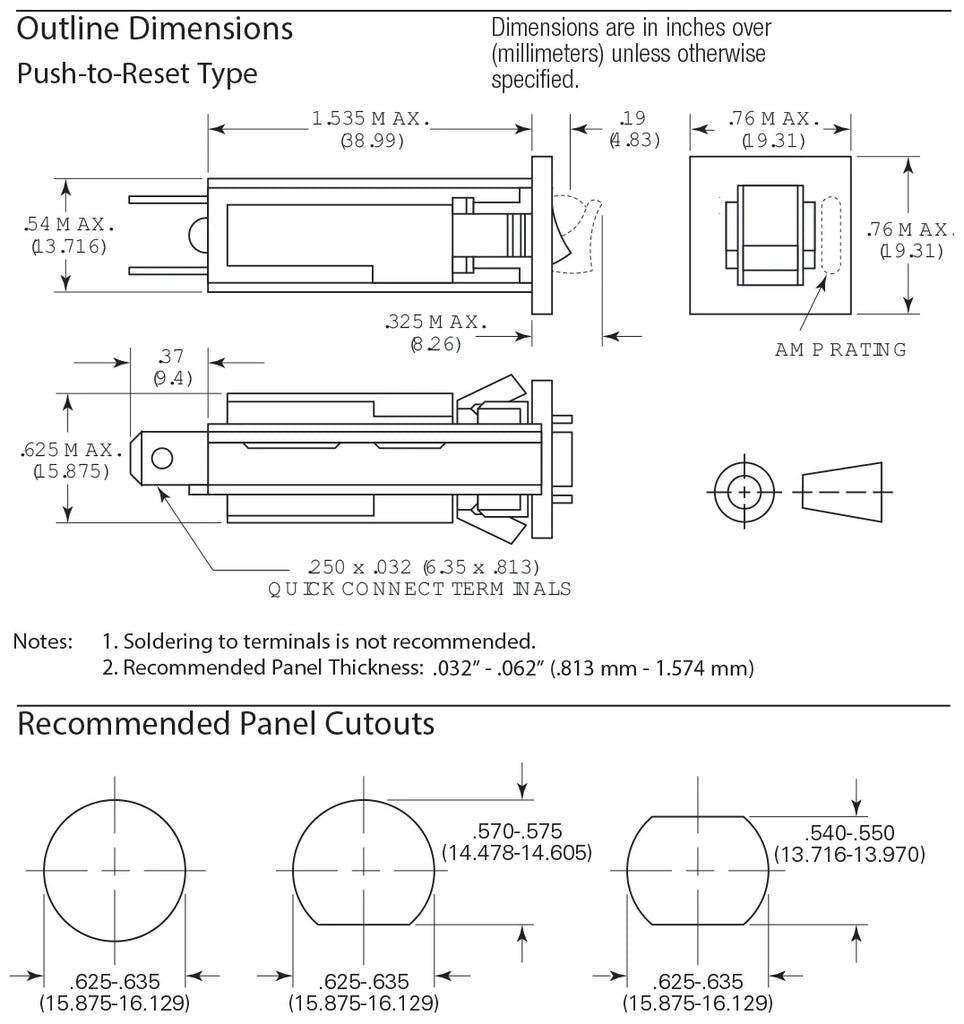

• Panel Thickness (Recommended) : .81 – 1.57 mm [ .032 – .062 in ]

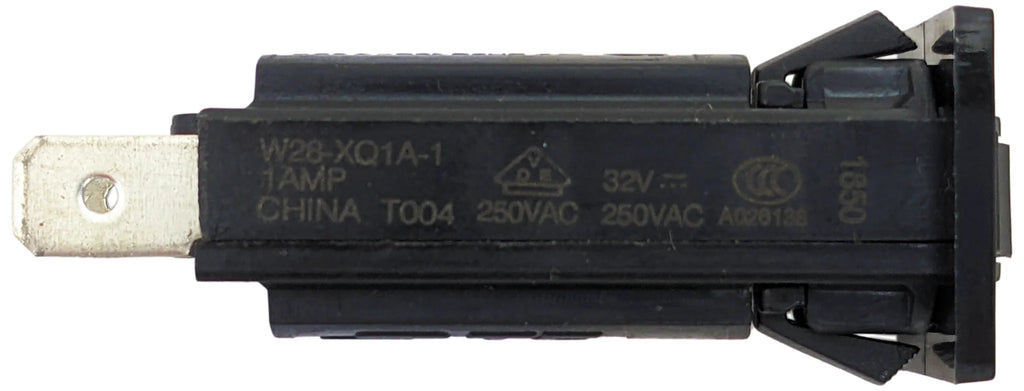

Identification Marking:

• Stamped Marking Type : White Rate Marking
