Save TIME AND MONEY by ordering the 4-IN-1 all quality, best selling models included. Simplify your ordering process. Analog and Digital Storage Scope versions available. Customized packages available for ten or more units (add or substitute other models). Call for custom package quote (10 + required)
DETAILS ON INSTRUMENTS:

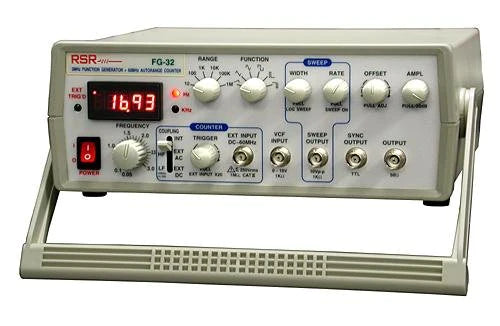

1. Sweep Function Generator (FG32)
- Six waveform functions - sine, triangle, square, ramp +/- pulse.
- 0.5Hz ~ 3MHz frequency range.
- Internal/External counter function.
- 5 digit autorange counter display.
- Linear/Log sweep. Sweep rate 10mS ~ 5S.
- Amplitude 20V p-p/open, 10V p-p/50 ohm load.
- External counter trigger level control.
- VCF input 0 ~ +/- 10V control frequency to 1000:1.

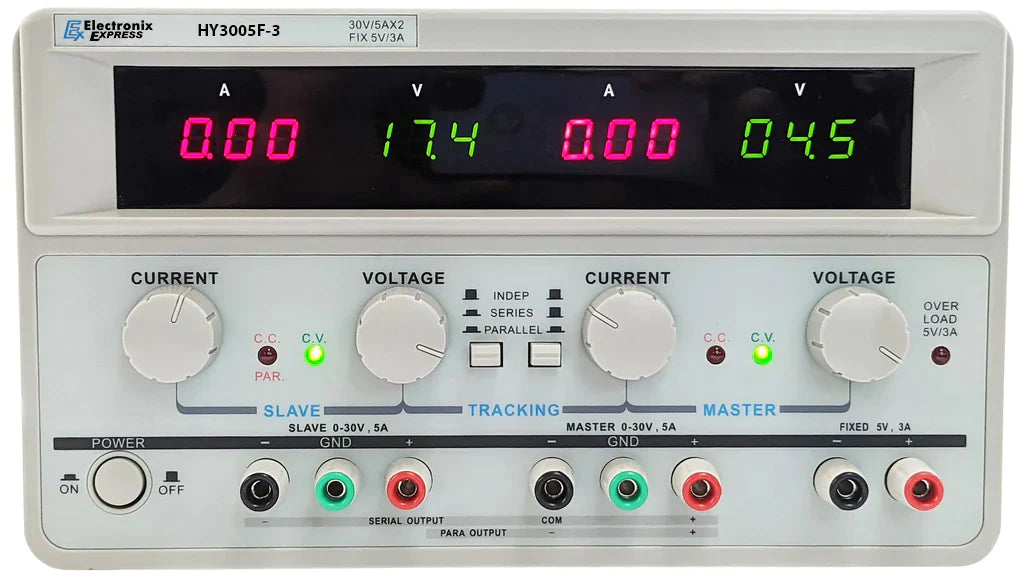

2. DC Triple Output Power Supply 0-30V; 5A, LED Display (HY3005F-3)
- Two 0-30V @ 0-5A; +5V @ 3A Quad Displays
- Two 0-30V; 0-5A variable output.
- Line regulation: CV <= 0.01% + 2 mV, CC <= 0.2% + 2 mA
- Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA
- Ripple noise: CV <= 0.5 mV RMS, CC <= 3 mA
- RMS Protection: constant current and short-circuit protection
- Display reading accuracy: +/-1% for voltage and +/-2% for current
- Environment: 0-40C, relative humidity < 90%
- Serial and parallel operation for double of normal outputs.
- 5V @ 3 A fixed output.
- Load Effect: .01% +5mV
- Source Effect: .02% +1mV
- Current limiting and short circuit protection.
- LED display
- Dimensions: 14.3" x 10.5" x 6.5"

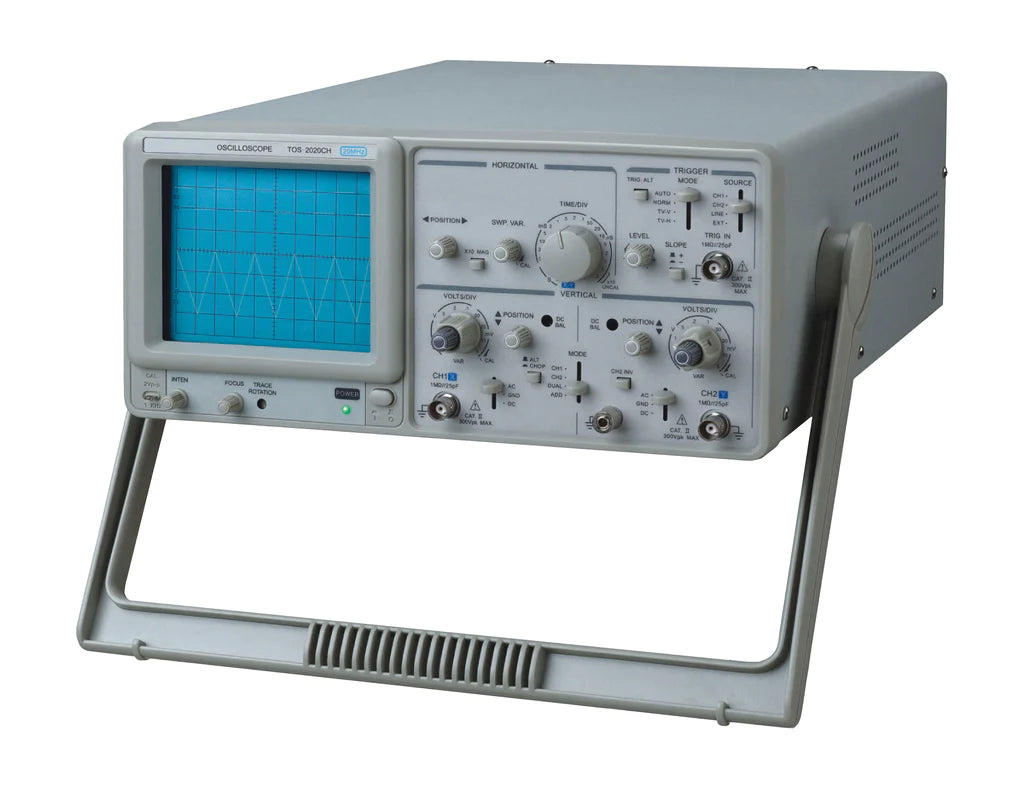

3. 20MHz, Dual Channel Analog Oscilloscope (OSC2020CH)
- Dual channel, 20MHz Analog Oscilloscope
- 10 times sweep magnification
- TV synchronization; X-Y mode
- High illumination internal graticule CRT
- Encoded switch, reliable and durable
- Fully sealed durable attenuation switch
- ALT triggering function, enabling simultaneous observation of two independent signals

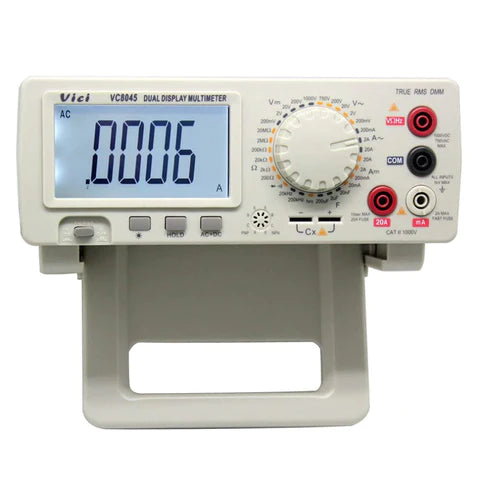

4. Bench DMM (DMVC8045)
- 4½ digit large LCD display with backlight and over-range indication
- Measures DCV, ACV, DCA, ACA, Ω, CAP, Hz, hFE, diode and continuity test functions
- Max. voltage measuring: DC 1000V or AC 750V, resolution: 10uV
- Max. current measuring: 20A
- Features polarity automatic switch, data hold, overload protect. AC measuring is performed by high accuracy true-RMS with wide bandwidth measuring for AC flow of any any waveform or AC+DC. Measuring way: double integral A/D converter.
